Input Speed Sensor (45RFE) Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

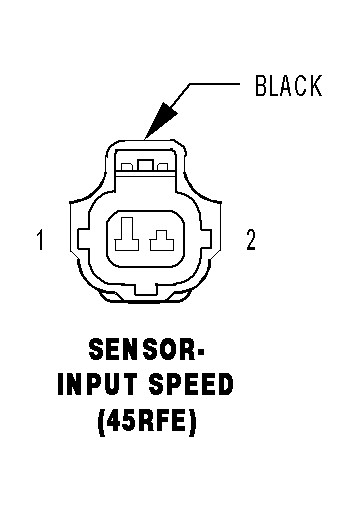

Input Speed Sensor (45RFE) Connector End View
SENSOR-INPUT SPEED (45RFE) - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T52 20DG/WT
INPUT SPEED SENSOR SIGNAL
2
T13 20DG/VT
SENSOR GROUND
Courtesy of DAIMLERCHRYSLER CORP.
