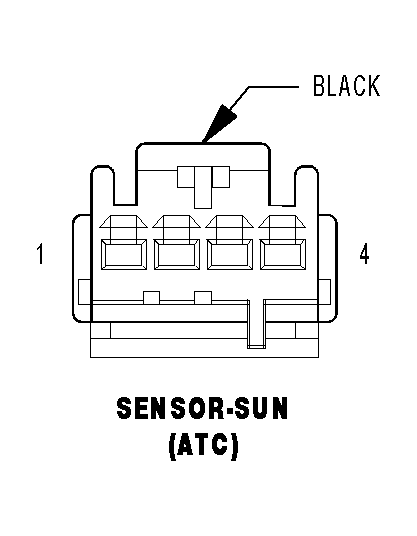

Sun Sensor (Automatic Temperature Control) Connector End View
SENSOR-SUN (ATC) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G39 20VT/LB |
SUN SENSOR NO. 1 SIGNAL |
| 2 |
G939 20VT/DB |
SUN SENSOR RETURN |
| 3 |
- |
- |
| 4 |
G139 20VT/OR |
SUN SENSOR NO. 2 SIGNAL |
