Trailer Tow Module Connector End View (C2)

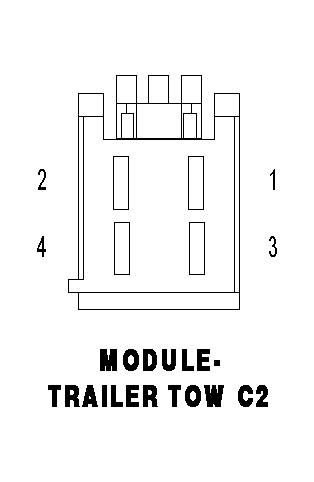

MODULE-TRAILER TOW C2 - 4 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A922 16RD
FUSED B(+)
2
-
-
3
Z923 14BK
GROUND
4
A907 14RD/DB
FUSED B(+)
Courtesy of DAIMLERCHRYSLER CORP.
