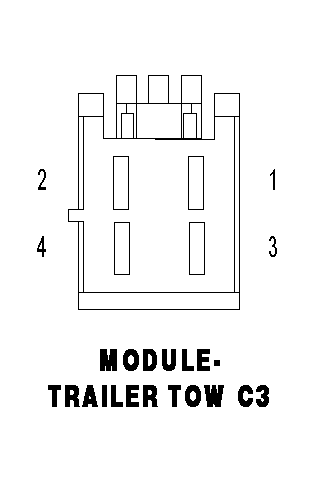

Trailer Tow Module Connector End View (C3)
MODULE-TRAILER TOW C3 - 4 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
-
-
2
L70 18WT/GY
FUSED PARK LAMP FEED
3
-
-
4
L7 18WT/YL
FUSED PARK LAMP FEED
Courtesy of DAIMLERCHRYSLER CORP.
