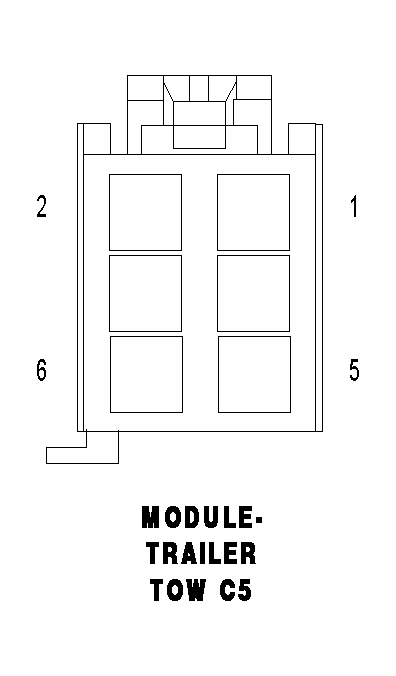

Trailer Tow Module Connector End View (C5)
MODULE-TRAILER TOW C5 - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L111 18WT |
TRAILER TOW BACKUP LAMP FEED |
| 2 |
L240 18WT |
TRAILER TOW REAR FOG LAMP RELAY CONTROL |
| 3 |
L615 18WT/YL |
TRAILER TOW LEFT STOP/TURN SIGNAL |
| 4 |
- |
- |
| 5 |
L614 18WT/DB |
TRAILER TOW RIGHT STOP/TURN SIGNAL |
| 6 |
L650 18WT/DG |
TRAILER TOW STOP LAMP FEED |
