Module-Front Control: Installation

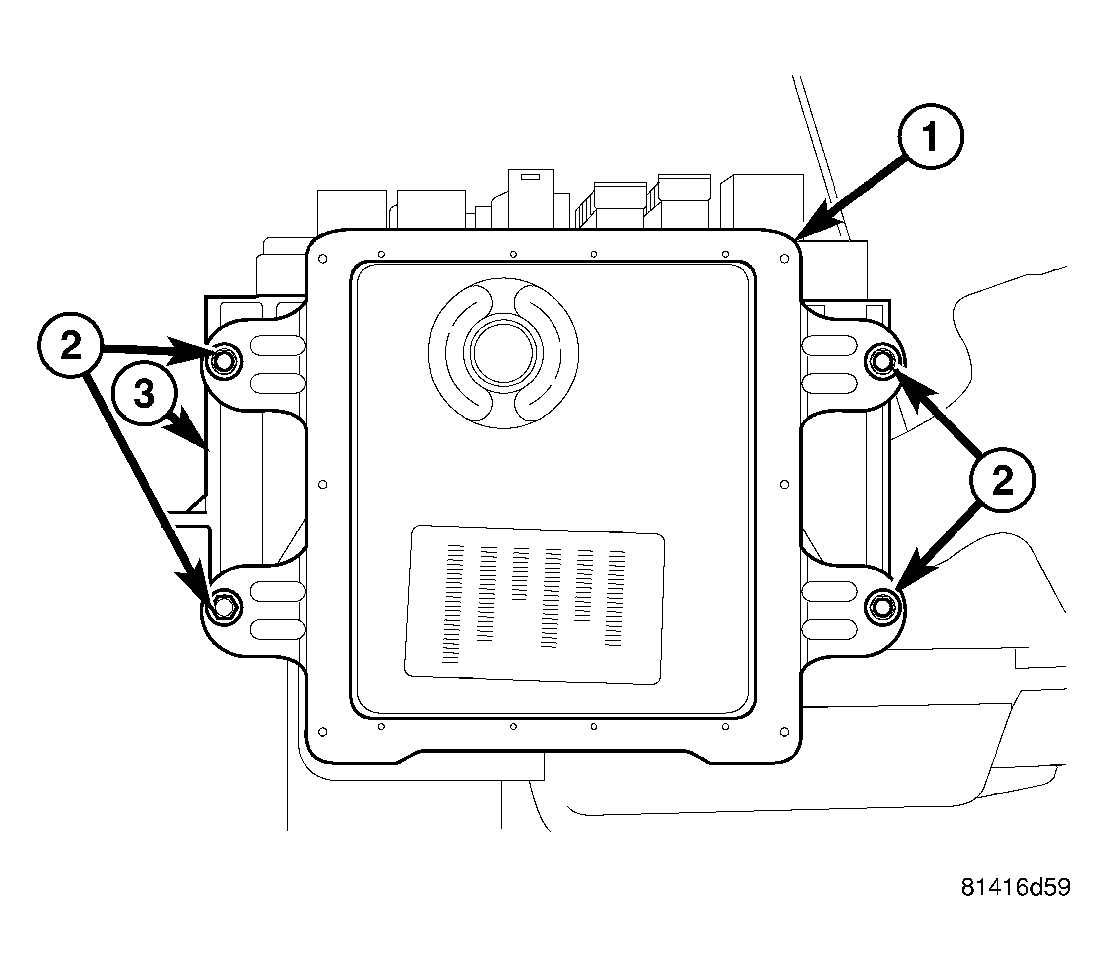

Fig 1: Removing/Installing Front Control Module
GC0027615Courtesy of DAIMLERCHRYSLER CORP.
NOTE: If installing a new service part, remove the plastic cover from the original module and install it on the new one.
  1. Connect the Integrated Power Module (IPM) (3) to the Front Control Module (FCM) (1) by lining up the electrical connector and pushing the two together.
  2. Install the four fasteners (2) securing the FCM (1) to the IPM (3).
  3. Install the IPM, (Refer to ELECTRICAL/POWER DISTRIBUTION/INTEGRATED POWER MODULE - INSTALLATION) .
  4. Connect the battery negative cable.
