Module-Memory Mirror: Removal

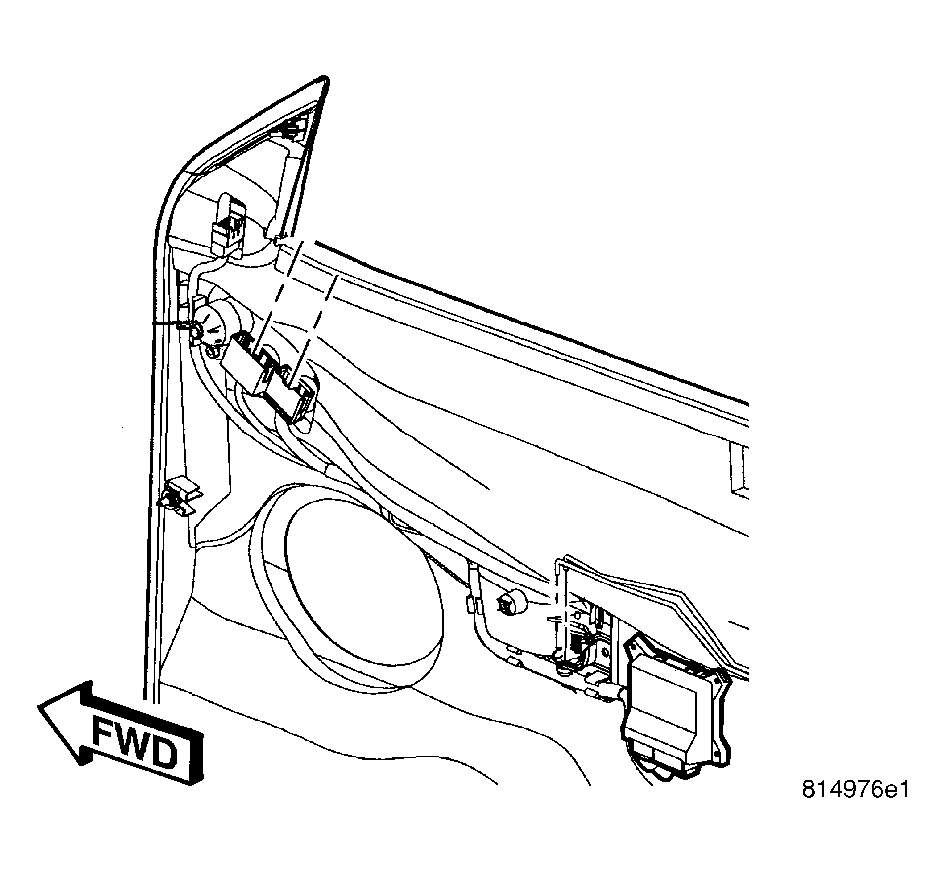

Fig 1: Identifying Memory Mirror Module
GC0027617Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  3. Disconnect the electrical connector from module.
  4. Remove fasteners and module from vehicle.
