Fuel Pump Module Connector End View

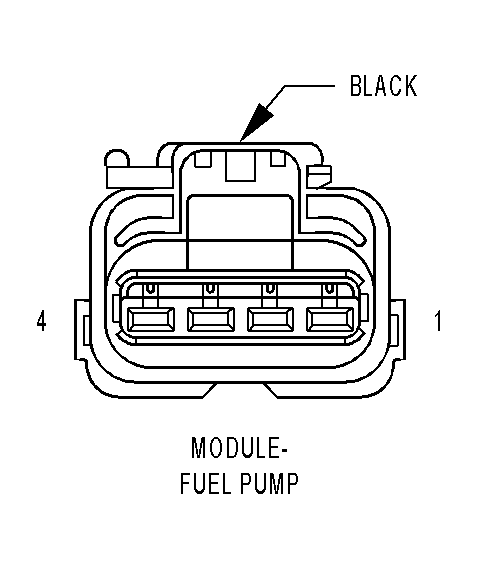

MODULE-FUEL PUMP - BLACK 4 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z912 18BK
GROUND
2
Z210 20BK
GROUND
3
N4 20DB/YL
FUEL LEVEL SENSOR NO. 1 SIGNAL
4
A109 16TN/RD
FUEL PUMP RELAY OUTPUT
Courtesy of DAIMLERCHRYSLER CORP.
