Glow Plug Module (Diesel) Connector End View

MODULE-GLOW PLUG (DIESEL) - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A904 10RD	FUSED B(+)

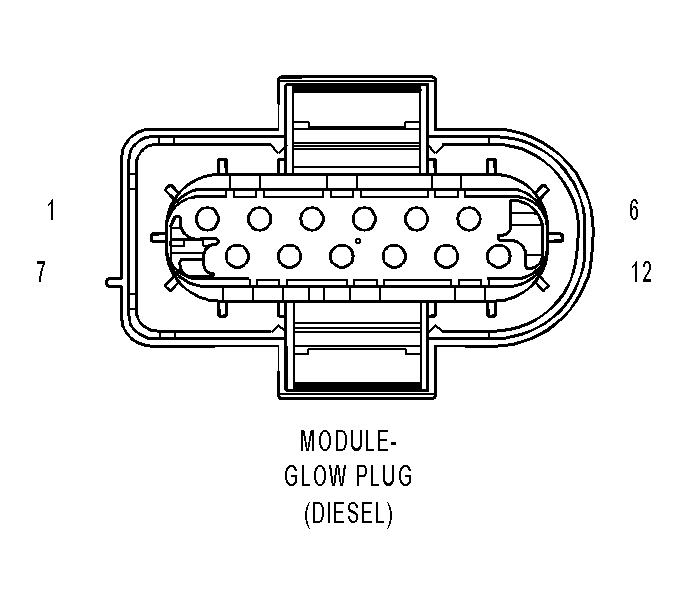

MODULE-GLOW PLUG (DIESEL) - 12 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A202 16BK/BL	GLOW PLUG NO. 1 CONTROL
2	A203 16BK/VT	GLOW PLUG NO. 2 CONTROL
3	A204 16BK/RD	GLOW PLUG NO. 3 CONTROL
4	A208 16BK/YL	GLOW PLUG NO. 4 CONTROL
5	A15 20RD/DG	FUSED ASD RELAY OUTPUT
6	Z921 18BR	GROUND
7	A211 16BK/DG	GLOW PLUG NO. 5 CONTROL
8	A216 16BK/WT	GLOW PLUG NO. 6 CONTROL
9	-	-
10	-	-
11	-	-
12	D509 20WT/BL	LIN BUS
