Integrated Power Module Connector End View

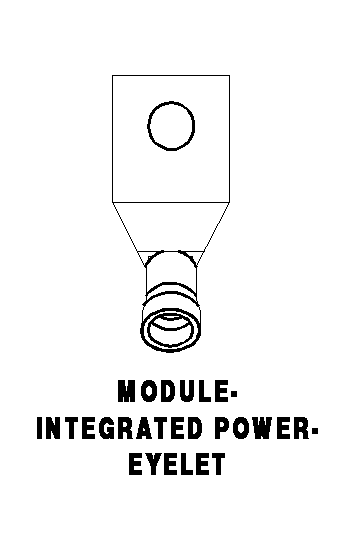

MODULE-INTEGRATED POWER-EYELET - 1 WAY

GCXH680195Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A1 6RD B(+)
1 A0 8RD B(+)
1 A1 4RD (EXPORT/DIESEL) B(+)
1 A0 6RD (EXPORT/DIESEL) B(+)
