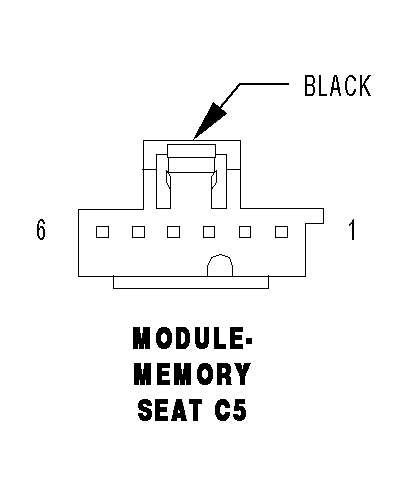

Memory Seat Module Connector End View (C5)
MODULE-MEMORY SEAT C5 - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Q102 20OR/DB |
ADJUSTABLE PEDALS SWITCH FORWARD |
| 5 |
Q103 20OR/LG |
ADJUSTABLE PEDALS SWITCH REARWARD |
| 6 |
Q101 20OR/LB |
ADJUSTABLE PEDALS SWITCH GROUND |
