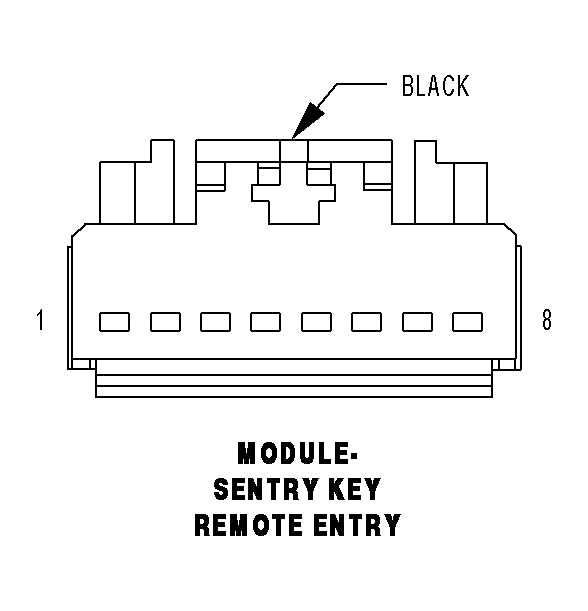

Sentry Key Remote Entry Module Connector End View
MODULE-SENTRY KEY REMOTE ENTRY - BLACK 8 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
D508 20WT/GY |
COM-LIN TIRE PRESSURE MONITOR LAN |
| 3 |
F941 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
Z18 20BK/LB |
GROUND |
| 5 |
A114 18GY/RD |
FUSED B(+) (I.O.D.) |
| 6 |
D55 20WT/OR |
CAN B BUS (+) |
| 7 |
D54 20WT |
CAN B BUS (-) |
