Steering Column Lock Module (RHD) Connector End View

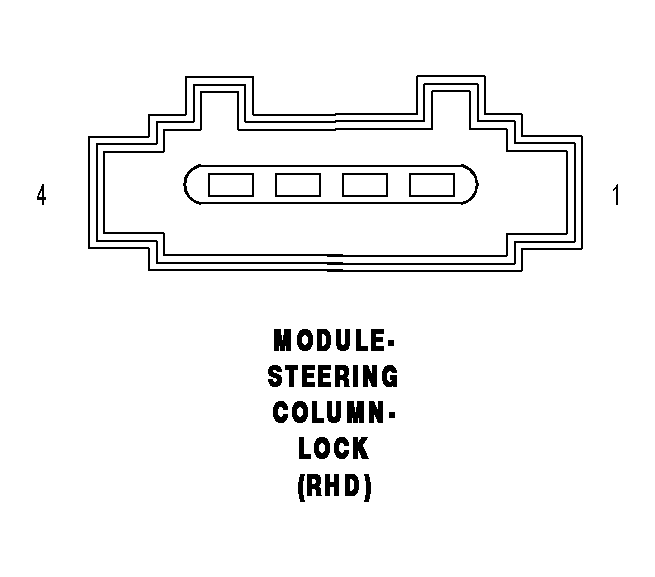

MODULE-STEERING COLUMN-LOCK (RHD) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A935 20RD |
FUSED B(+) |
| 2 |
Z906 18BK |
GROUND |
| 3 |
A306 20RD/VT |
IGNITION SWITCH FEED |
| 4 |
D508 20WT/GY |
COM-LIN TIRE PRESSURE MONITOR LAN |
