Anti-Lock Brake System (Service Information): Sensor-Dynamics: Installation

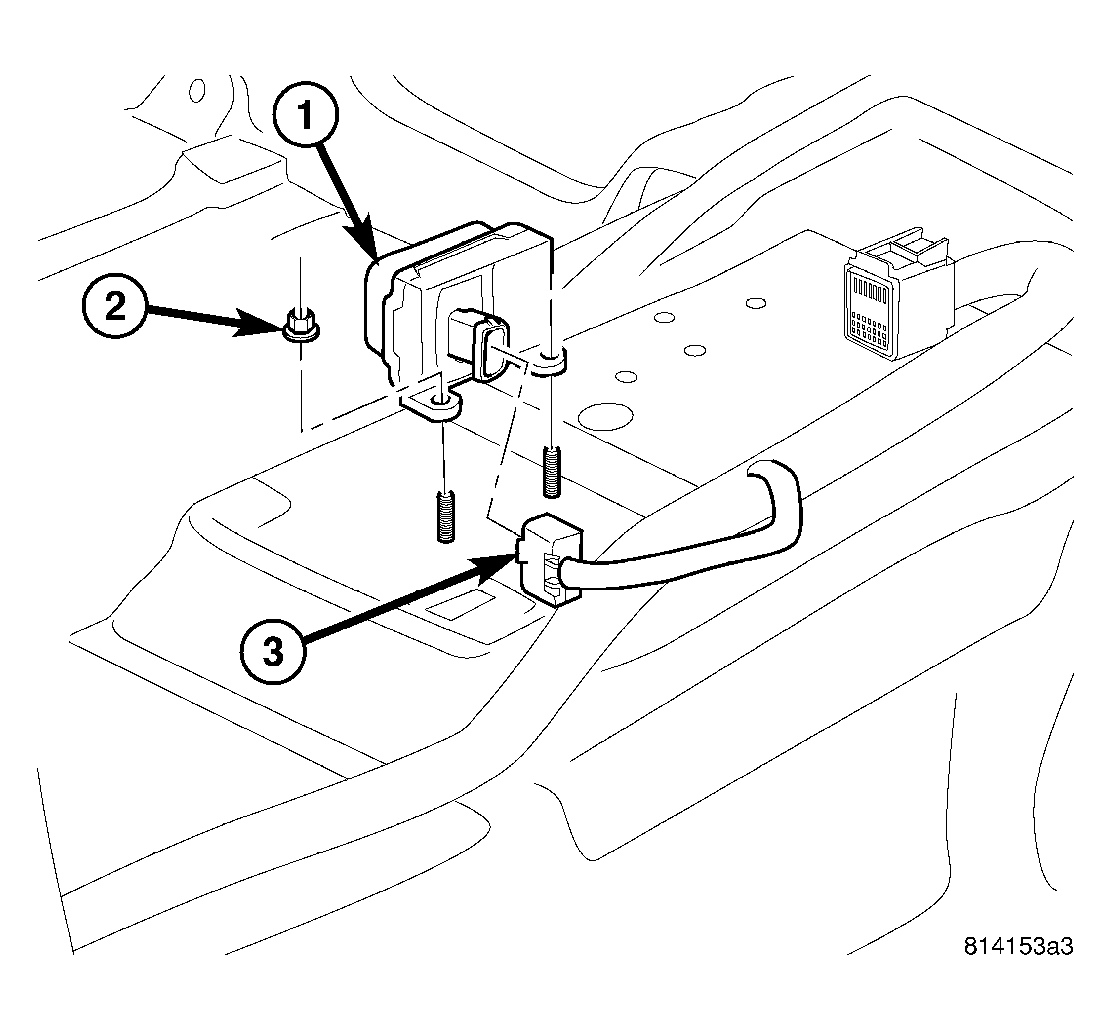

Fig 1: Dynamics Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - DYNAMICS SENSOR

2 - NUT

3 - ELECTRICAL CONNECTOR

1. Install the dynamics sensor (1) to the vehicle.
2. Install the electrical connector (3)
3. Install the two retaining nuts (2) and tighten to 9 N.m (80 in. lbs.).
4. Install the floor console.
