Sensor-Rear Wheel Speed: Installation
Courtesy of DAIMLERCHRYSLER CORP.

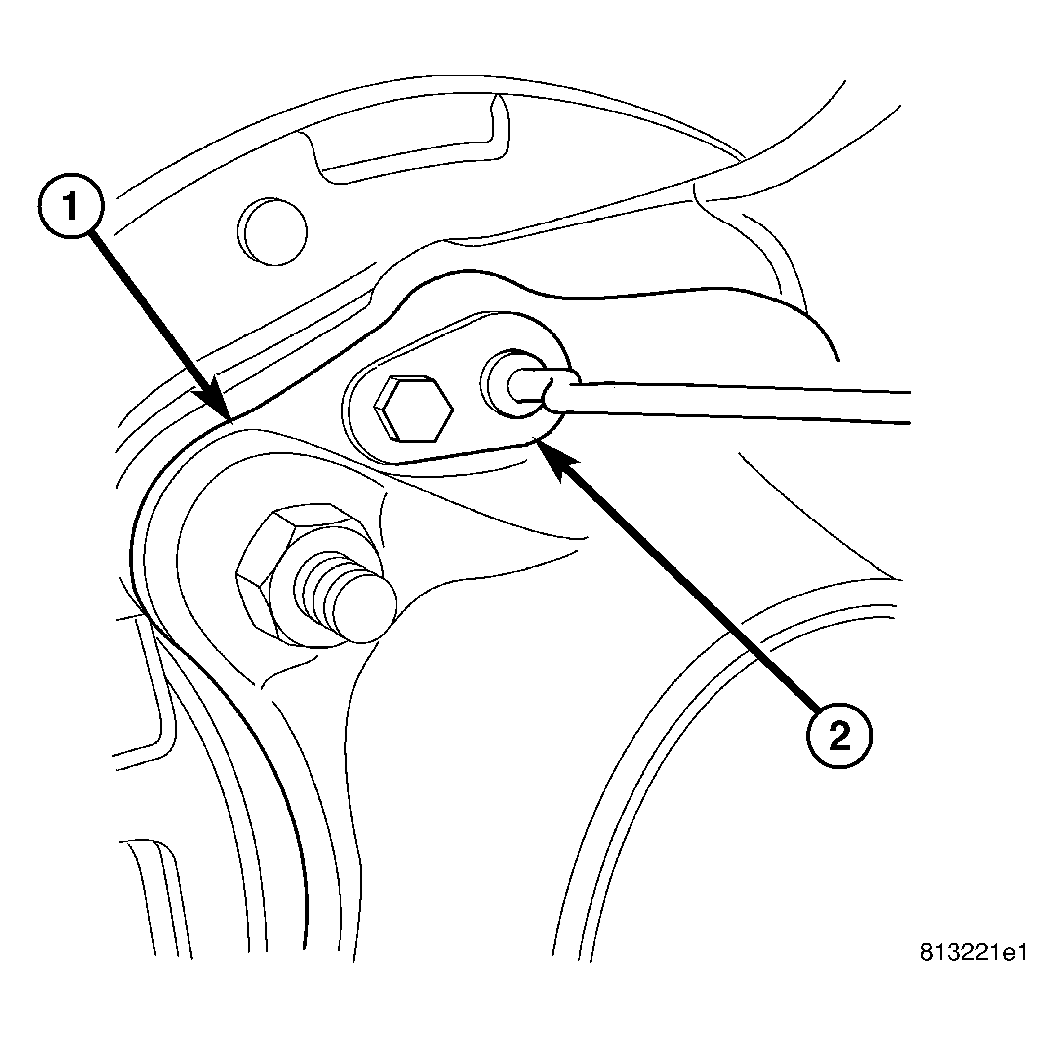

- Insert the wheel speed sensor (2) through the support plate (1).
- Tighten the wheel speed sensor bolt (2) to 12-14 N.m (106-124 in. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.

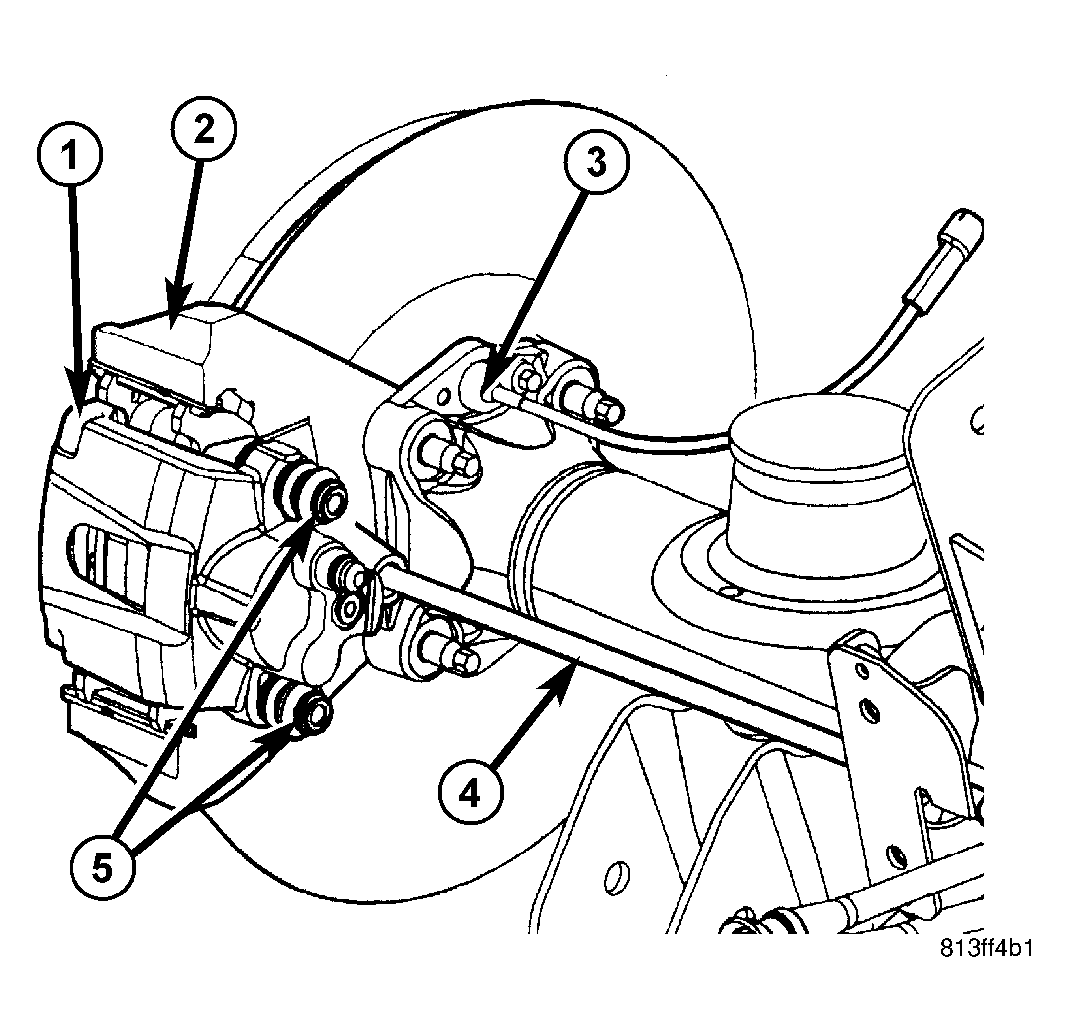

| 1 - CALIPER |
| 2 - CALIPER ADAPTER |
| 3 - WHEEL SPEED SENSOR |
| 4 - PARK BRAKE CABLE |
| 5 - CALIPER SLIDE BOLTS |
- Secure the wheel speed sensor wire (3) to the routing clips. Verify that the sensor wire is secure and clear of the rotating components.
- Reconnect the wheel speed sensor electrical connector (3).
- Lower the vehicle.
