Commander Base, 4.7 N, RWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
DTCS B1BBC To B2210
>>
Diagnosis And Testing
>>
B2101-Ignition Run/Start Input Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

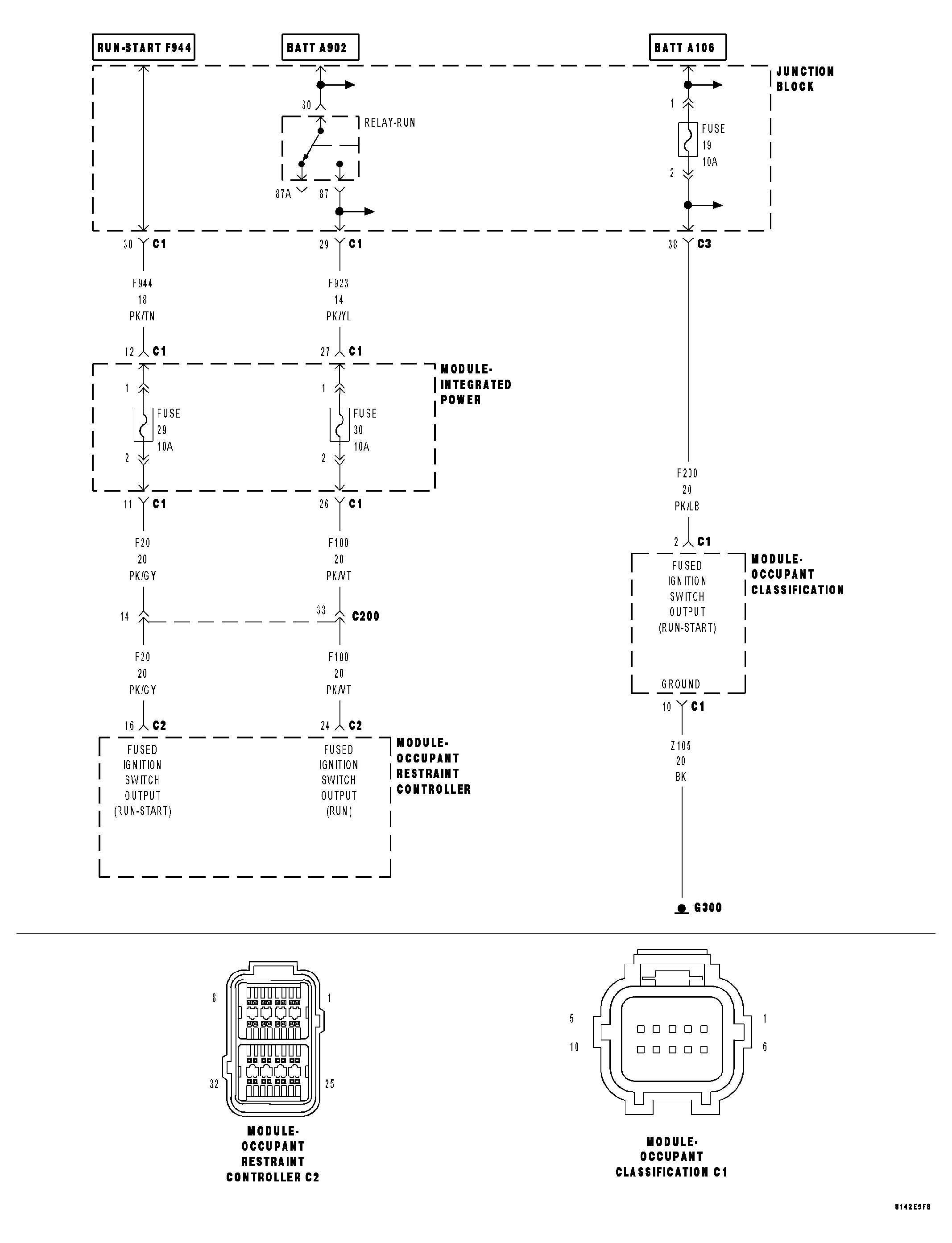

Fig 1: Occupant Restraint Controller Power Feed (Start/Run) Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
