Remote Keyless Entry (RKE) Module Replacement

REMOTE KEYLESS ENTRY MODULE

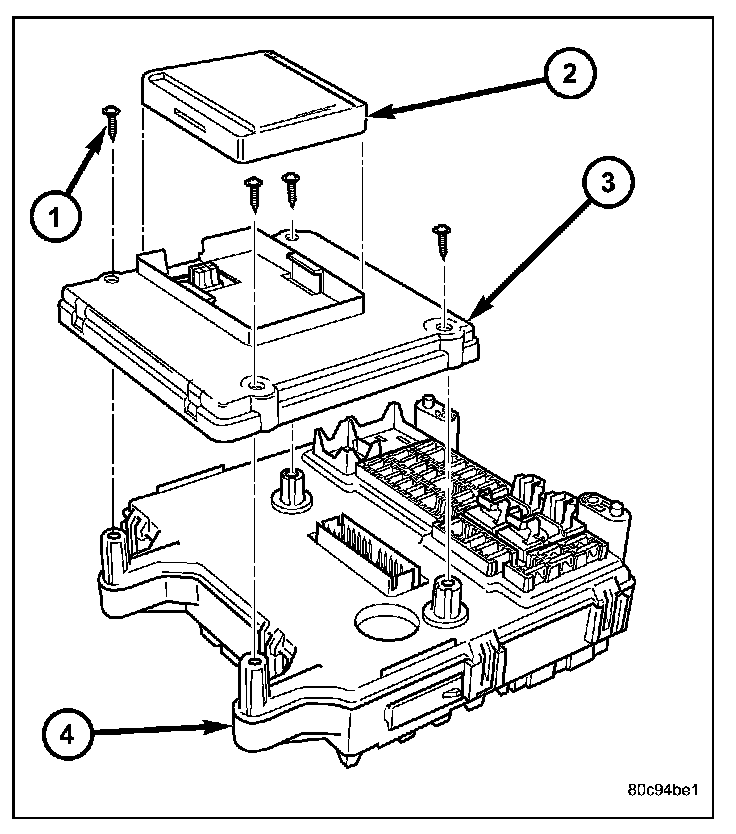

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the Junction Block (JB) (4).
3. Remove Remote Keyless Entry module (2) from Body Control Module (3).

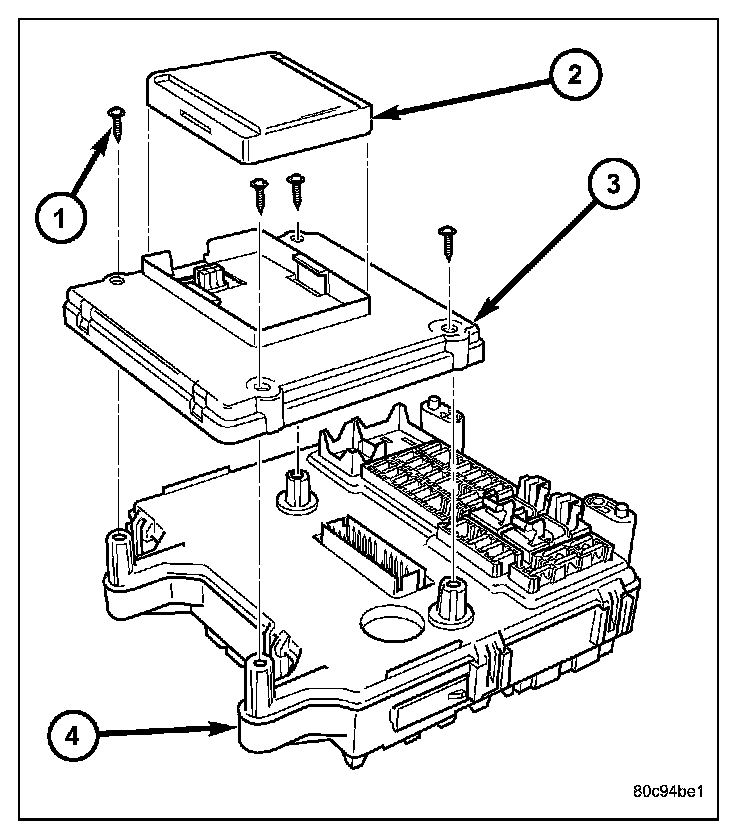

INSTALLATION




1. Install Remote Keyless Entry module (2) to Body Control Module (3).
2. Install Junction Block (JB) (4).
3. Connect the battery negative cable.
