Engine Control Module: Locations

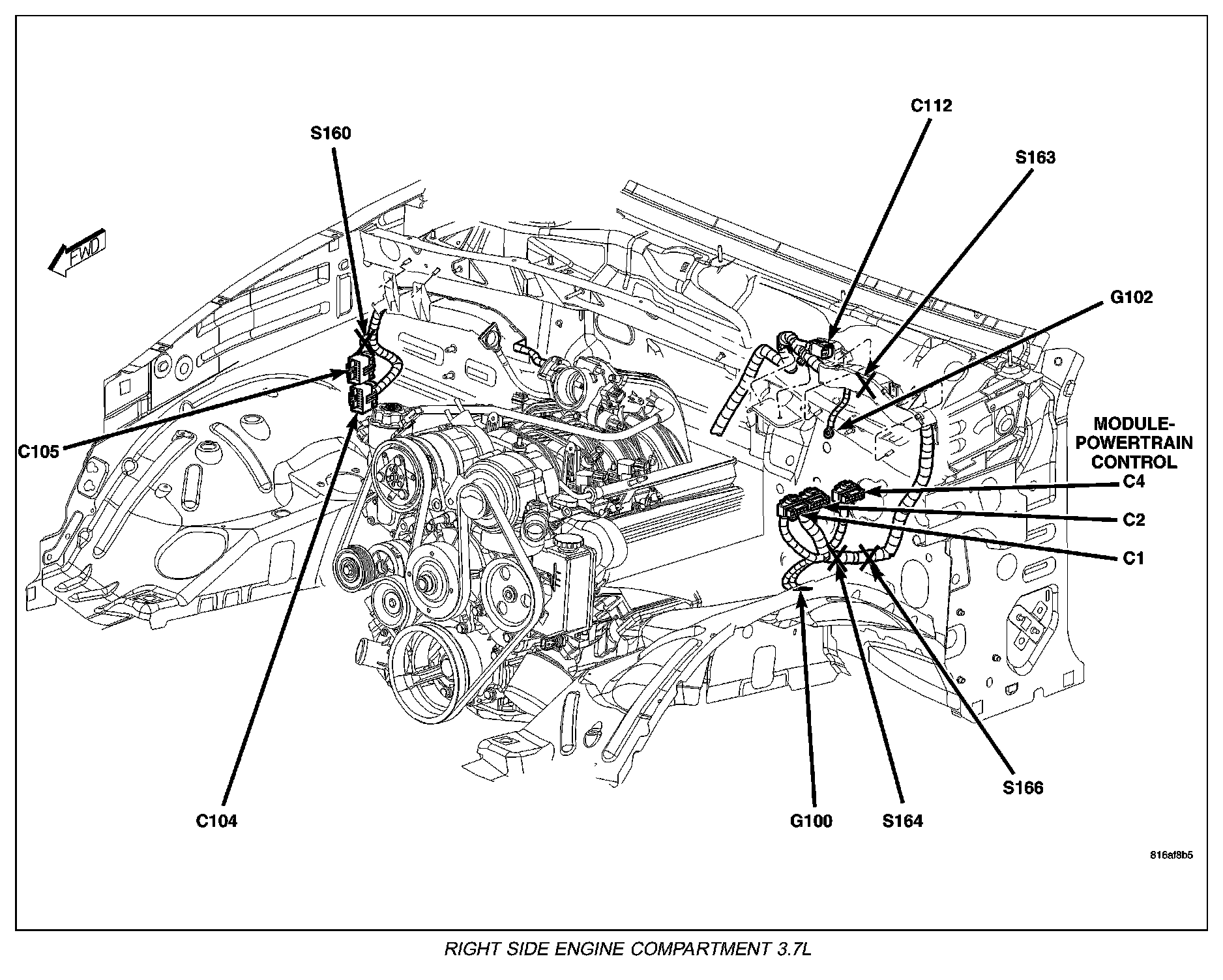

Right Side Engine Compartment 3.7L:

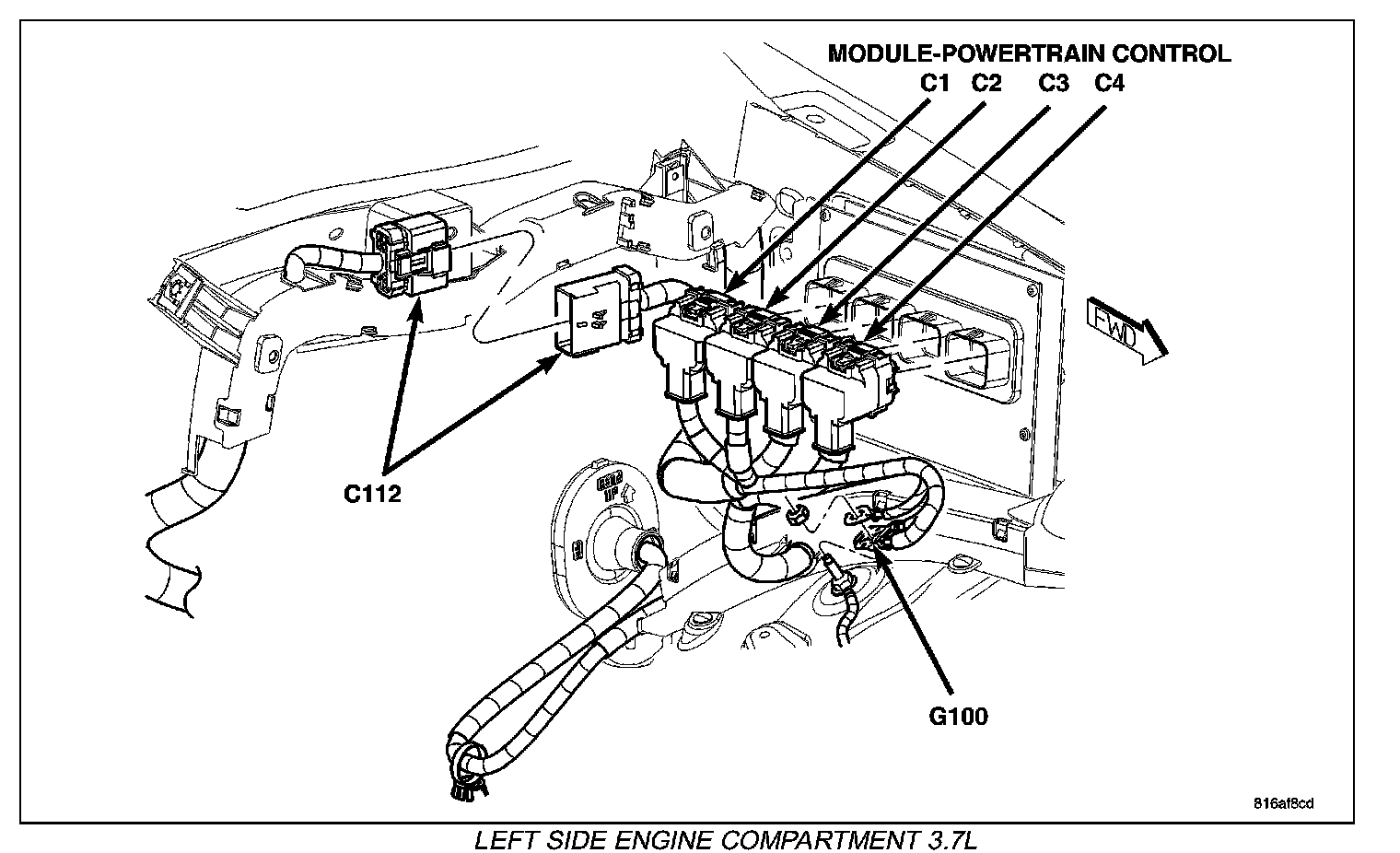

Left Side Engine Compartment 3.7L:

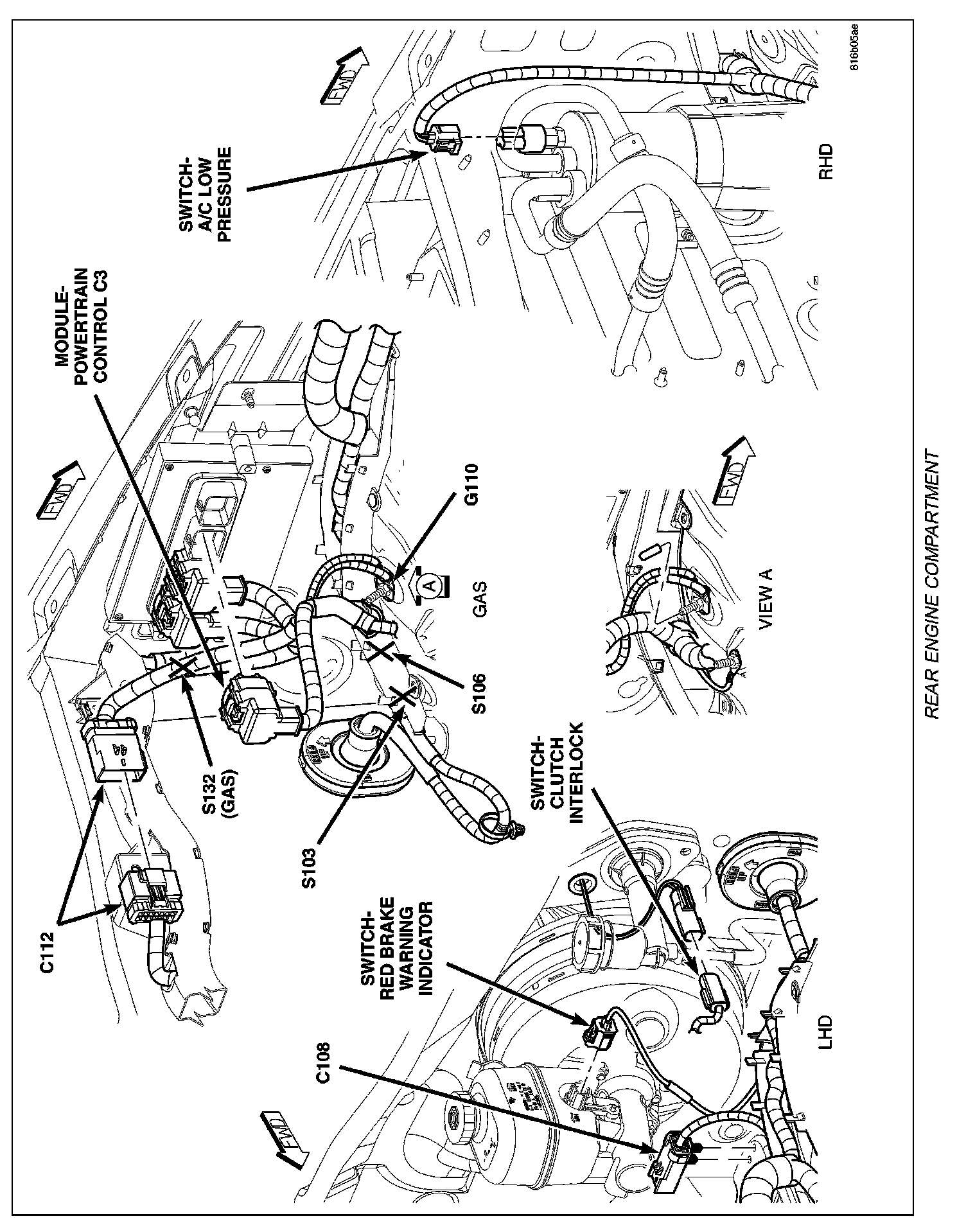

Rear Engine Compartment:
