System Specifications

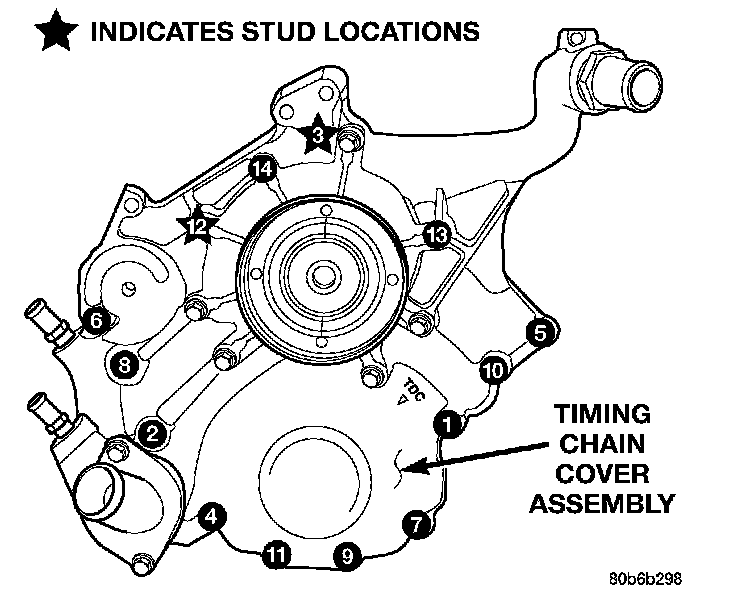

Timing Chain Cover-Bolts 58 Nm (43 ft. lbs.)

Crankshaft Damper-Bolt 175 Nm (130 ft. lbs.)
