Installation
INSTALLATION

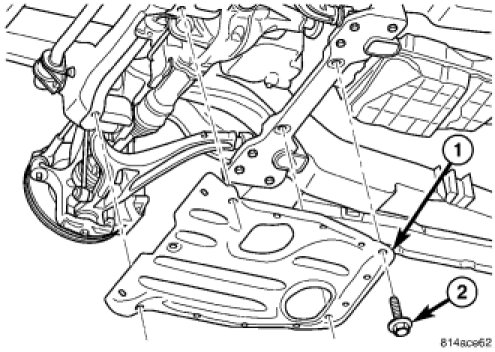

1.
Install the
skid plate
(1) and install the four bolts (2).
2.
Tighten the bolts to 28 Nm (21 ft. lbs.).
