Power Outlet-Rear
Component ID: 236

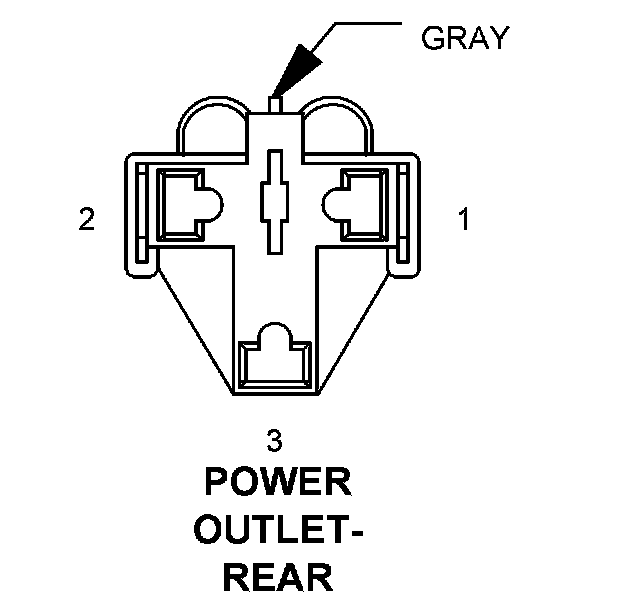

Component : POWER OUTLET-REAR
Connector:
Name : POWER OUTLET-REAR
Color : GRAY
# of pins : 3
Pin Description Circuit
1 FUSED B(+) A205 14RD/OR
2 - -
3 GROUND Z909 16BK
Component Location - 57

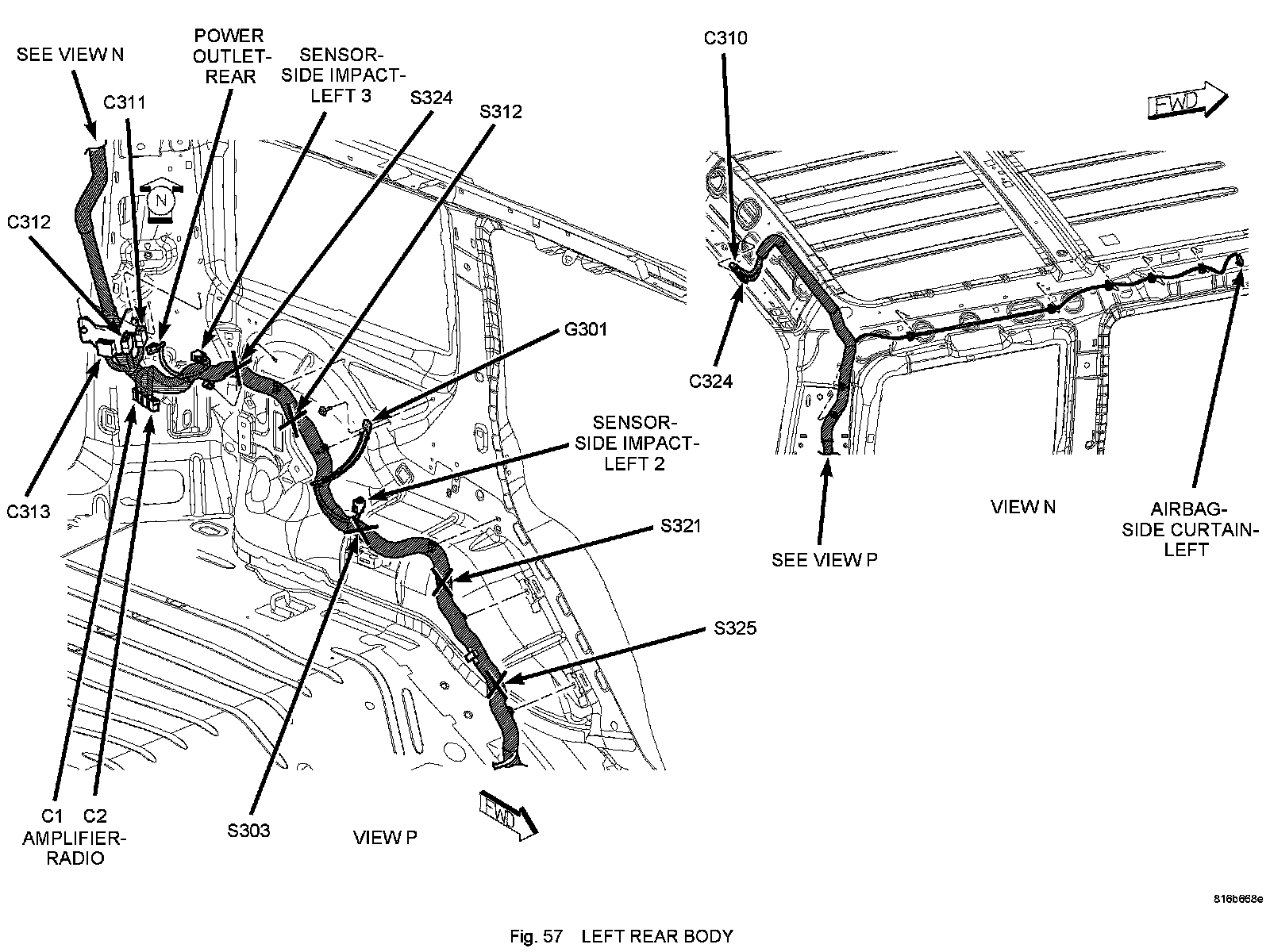

Fig. 57:
Component ID: 236
Component : POWER OUTLET-REAR
Connector:
Name : POWER OUTLET-REAR
Color : GRAY
# of pins : 3
Pin Description Circuit
1 FUSED B(+) A205 14RD/OR
2 - -
3 GROUND Z909 16BK
Component Location - 57
