Battery

Component ID: 20
Component : BATTERY

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1




Pin Description Circuit
1 GROUND Z100 4BK/VT
Pin Description Circuit
1 GROUND Z1 4BK
Pin Description Circuit
1 GROUND Z1 6BK
Pin Description Circuit
1 GROUND Z100 6BK/VT

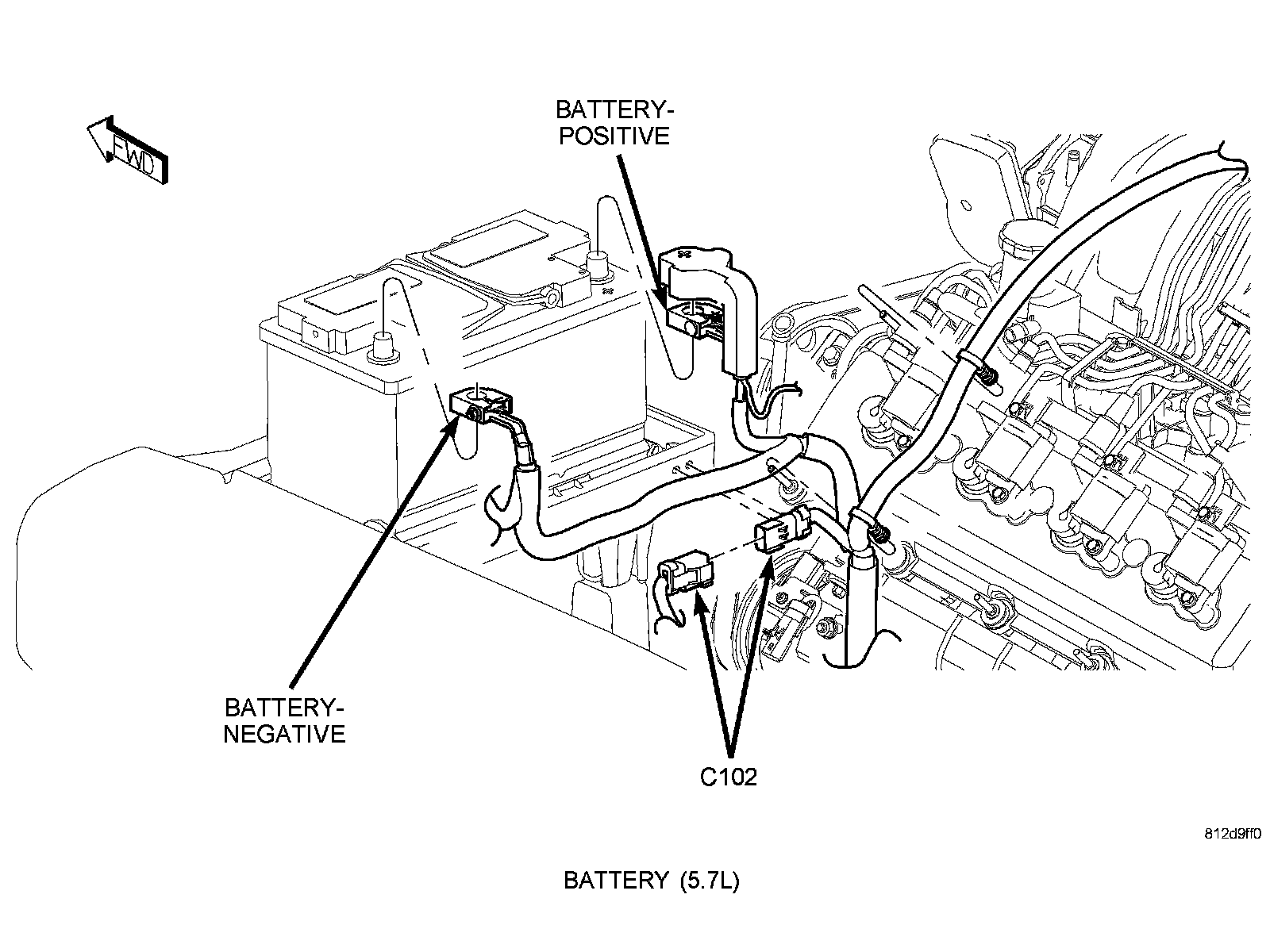

Component Location - 13




Component Location - 12






Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 GROUND Z1 4BK
Pin Description Circuit
1 GROUND Z100 4BK/VT

Component Location - 13




Component Location - 12






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1




Pin Description Circuit
1 B(+) A1 4RD
Pin Description Circuit
1 B(+) A8 4RD
Pin Description Circuit
1 B(+) A1 6RD
Pin Description Circuit
1 B(+) A8 6RD

Component Location - 13




Component Location - 12
