Brake Fluid Level Sensor/Switch

Component ID: 459
Component : SENSOR-BRAKE FLUID LEVEL

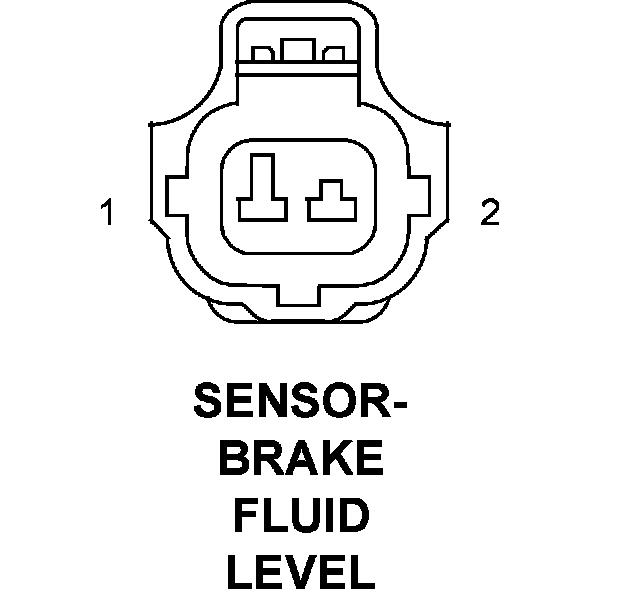

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color :
# of pins : 2




Pin Description Circuit
1 BRAKE FLUID LEVEL SWITCH SENSE B20 20DG/OR
2 GROUND Z387 20BK

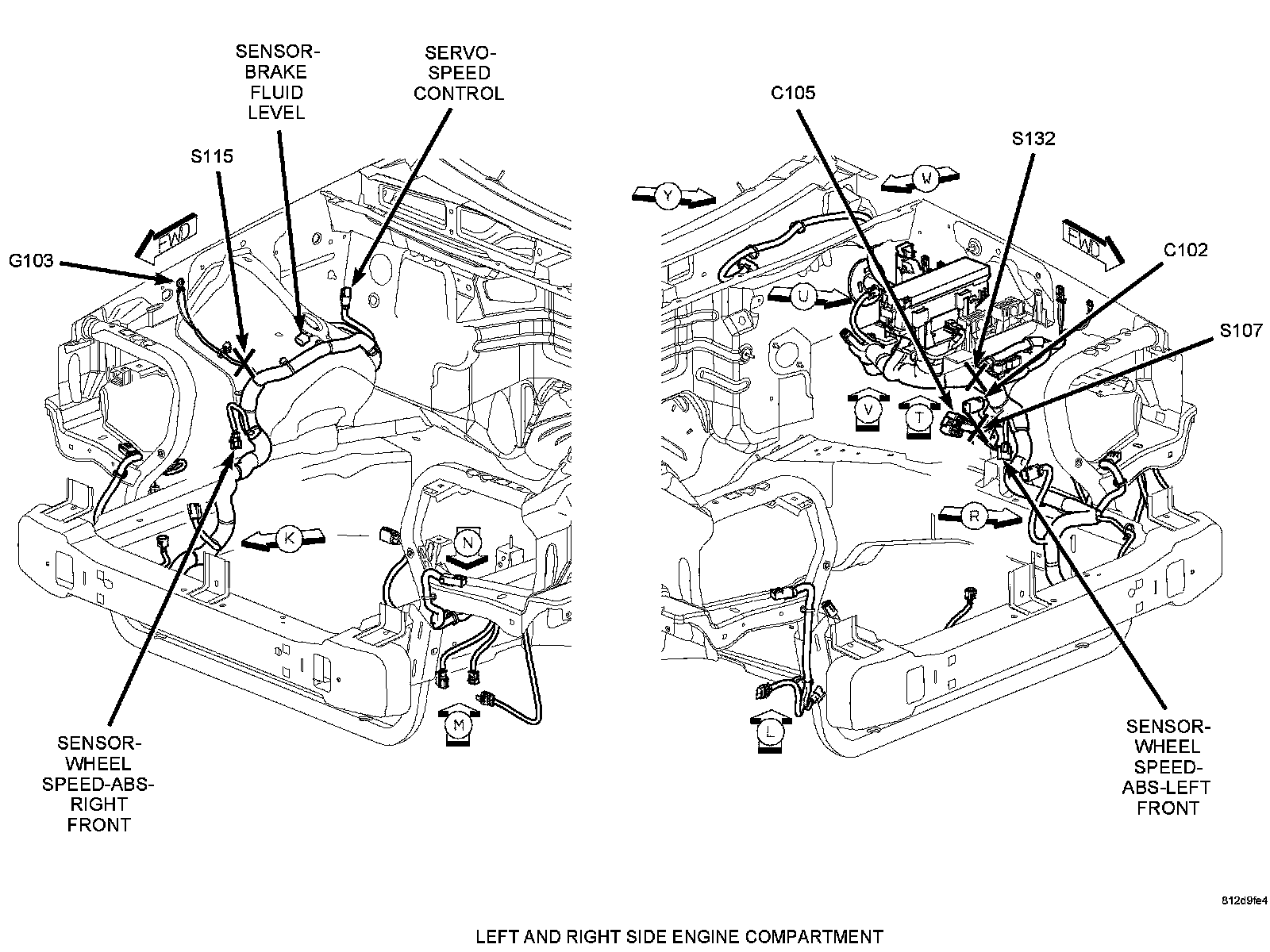

Component Location - 1
