Compass

Component ID: 186
Component : MODULE-COMPASS

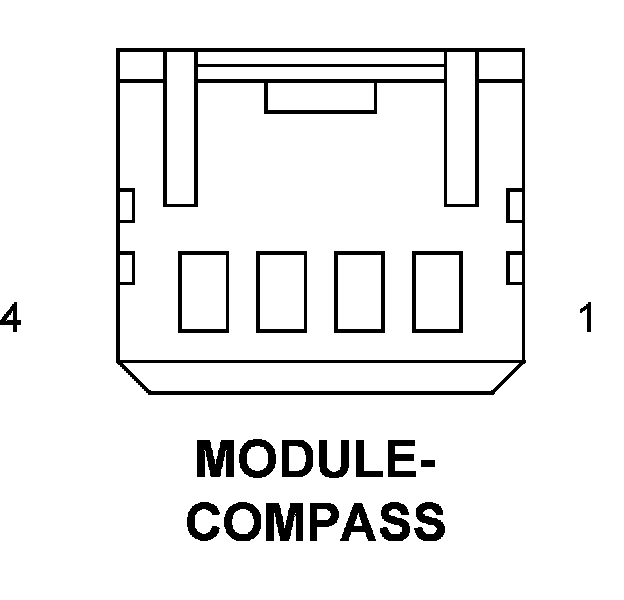

Connector:
Name : MODULE-COMPASS
Color :
# of pins : 4




Pin Description Circuit
1 - -
2 LIN BUS D500 20WT
3 GROUND Z915 20BR
3 GROUND Z915 20BK
4 FUSED RUN RELAY OUTPUT F921 20PK/YL

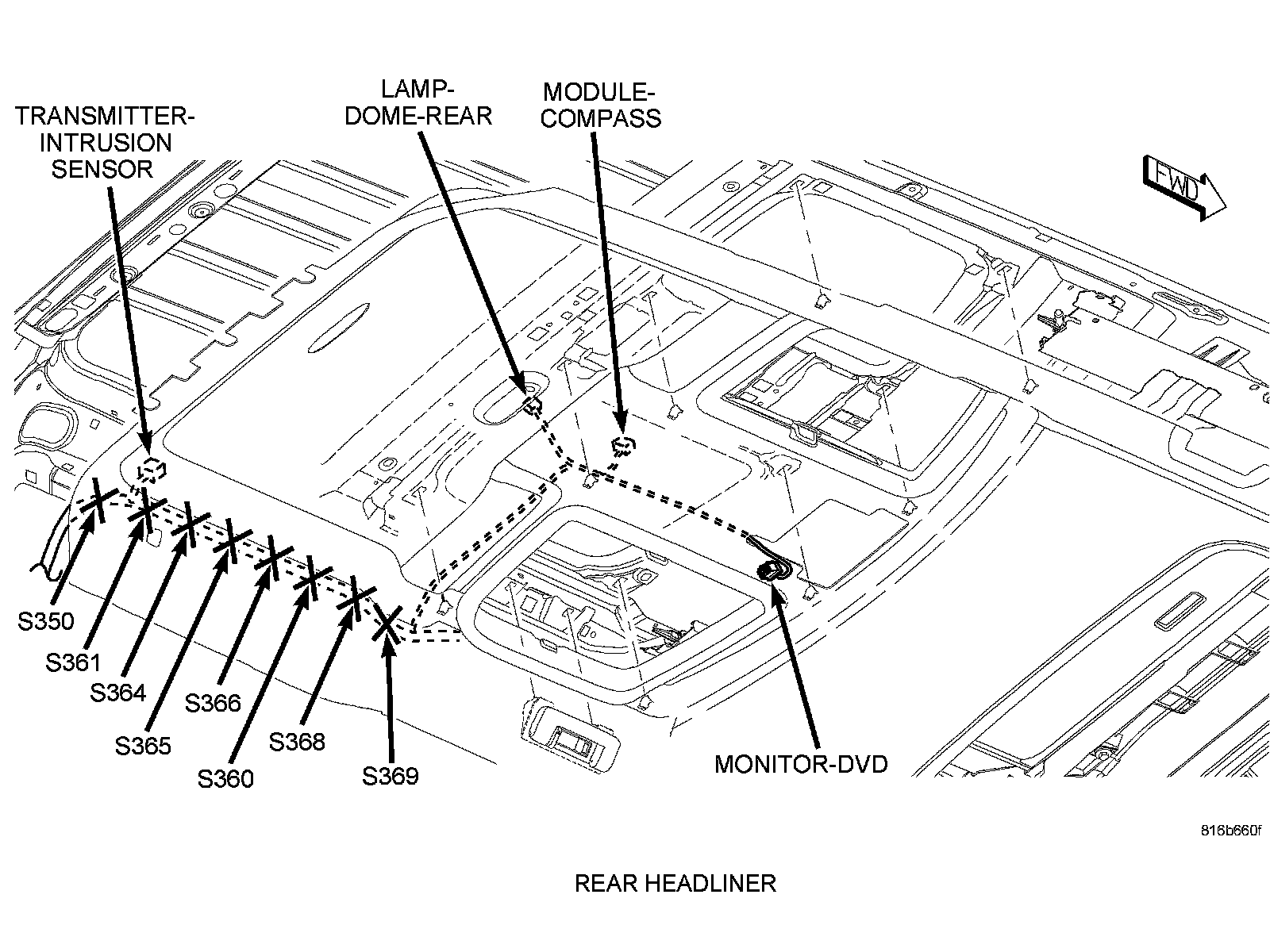

Component Location - 51
