Fluid Pressure Sensor/Switch, A/T

Component ID: 479
Component : SENSOR-LINE PRESSURE

Connector:
Name : SENSOR-LINE PRESSURE
Color :
# of pins : 4
Qualifier : (45RFE)




Pin Description Circuit
1 SENSOR GROUND K900 20DB/DG
2 5 VOLT SUPPLY F856 20YL/PK
3 LINE PRESSURE SENSOR SIGNAL T38 20YL/BR
4 - -

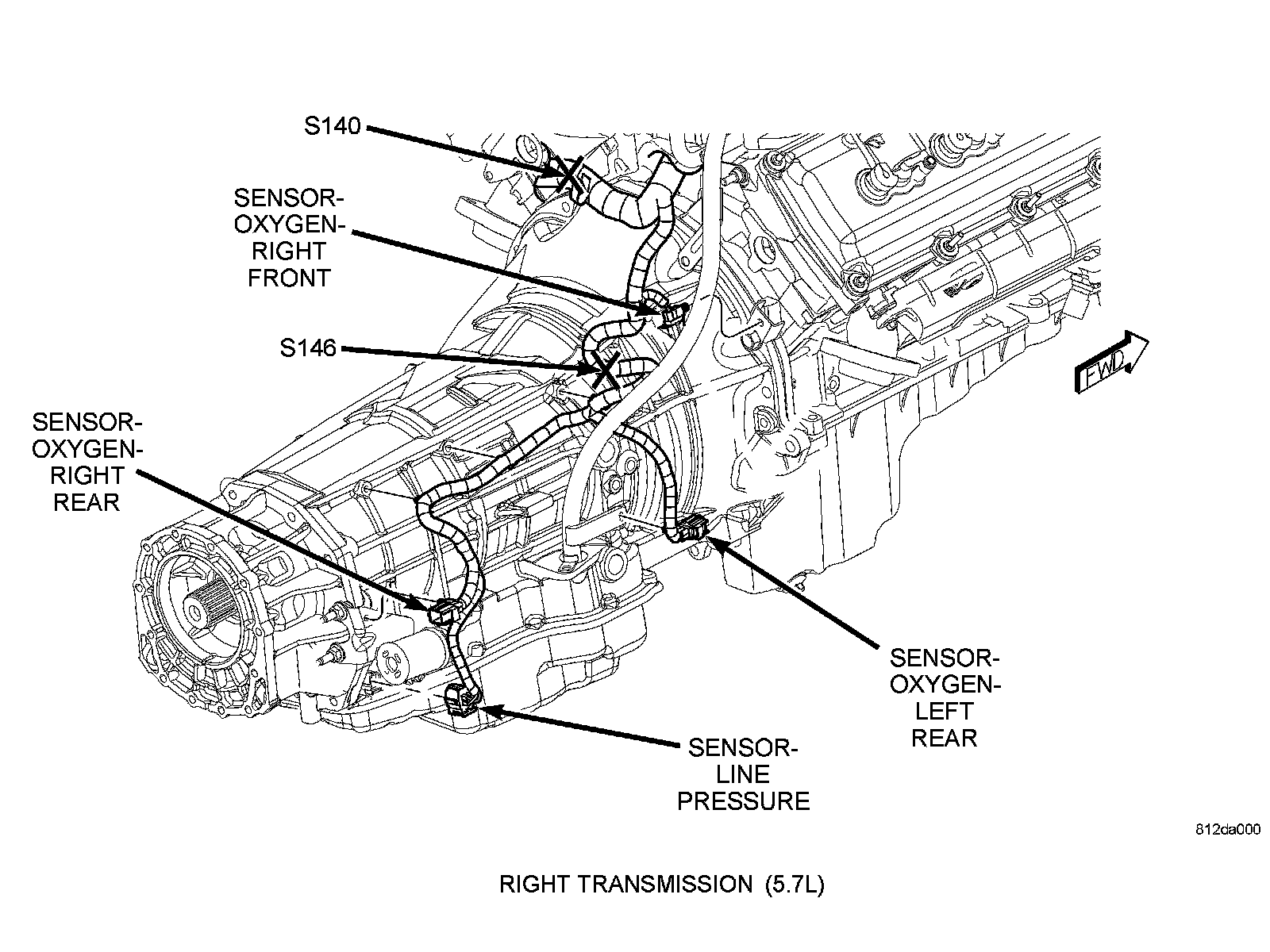

Component Location - 23

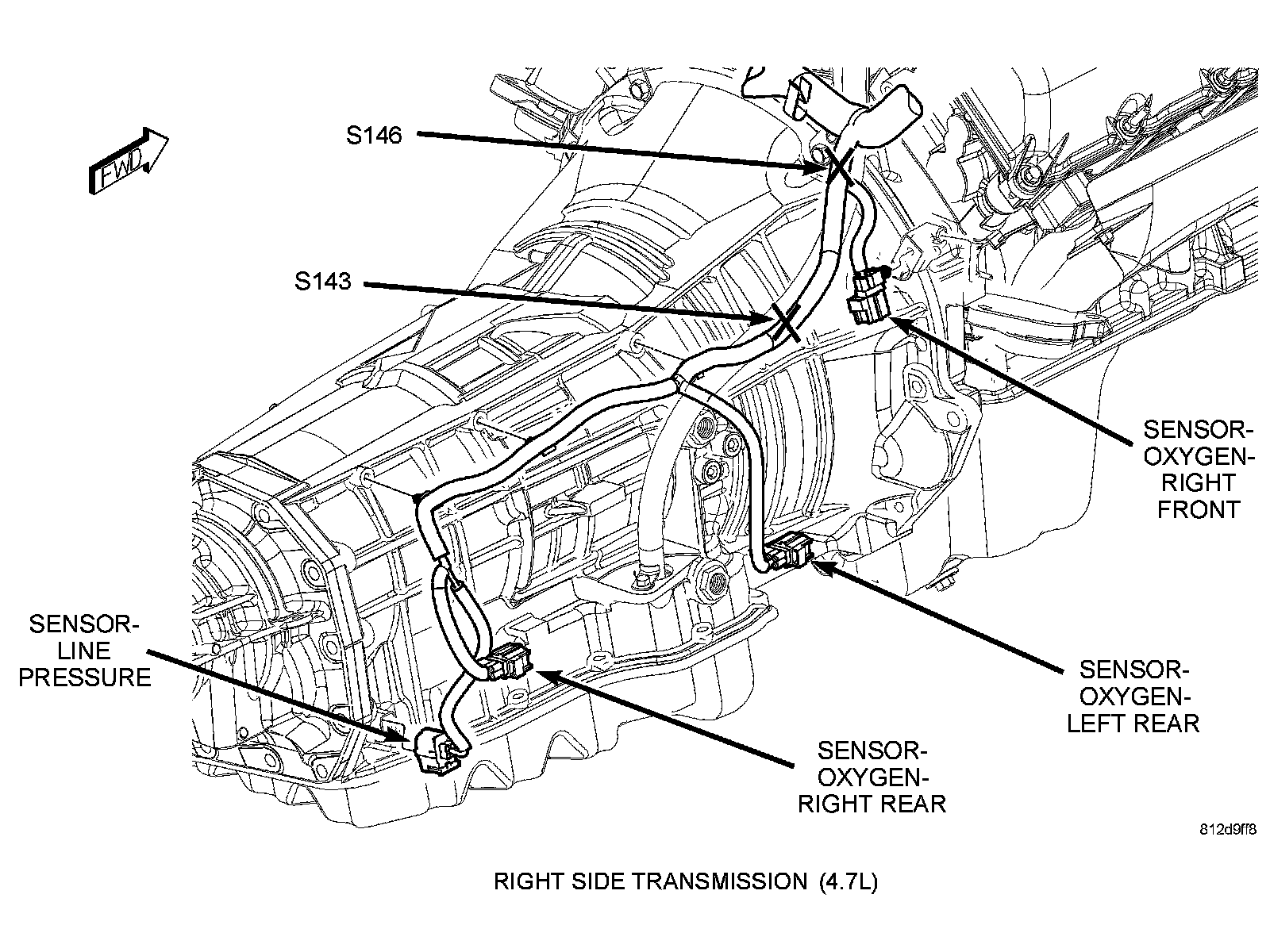

Component Location - 28
