Sensor-Side Impact-Right 1

Component ID: 508
Component : SENSOR-SIDE IMPACT-RIGHT 1

Connector:
Name : SENSOR-SIDE IMPACT-RIGHT 1
Color : GRAY
# of pins : 2




Pin Description Circuit
1 RIGHT SIDE IMPACT SENSOR 1 GROUND R16 20BR/LG
2 RIGHT SIDE IMPACT SENSOR 1 SIGNAL R14 20TN/LG

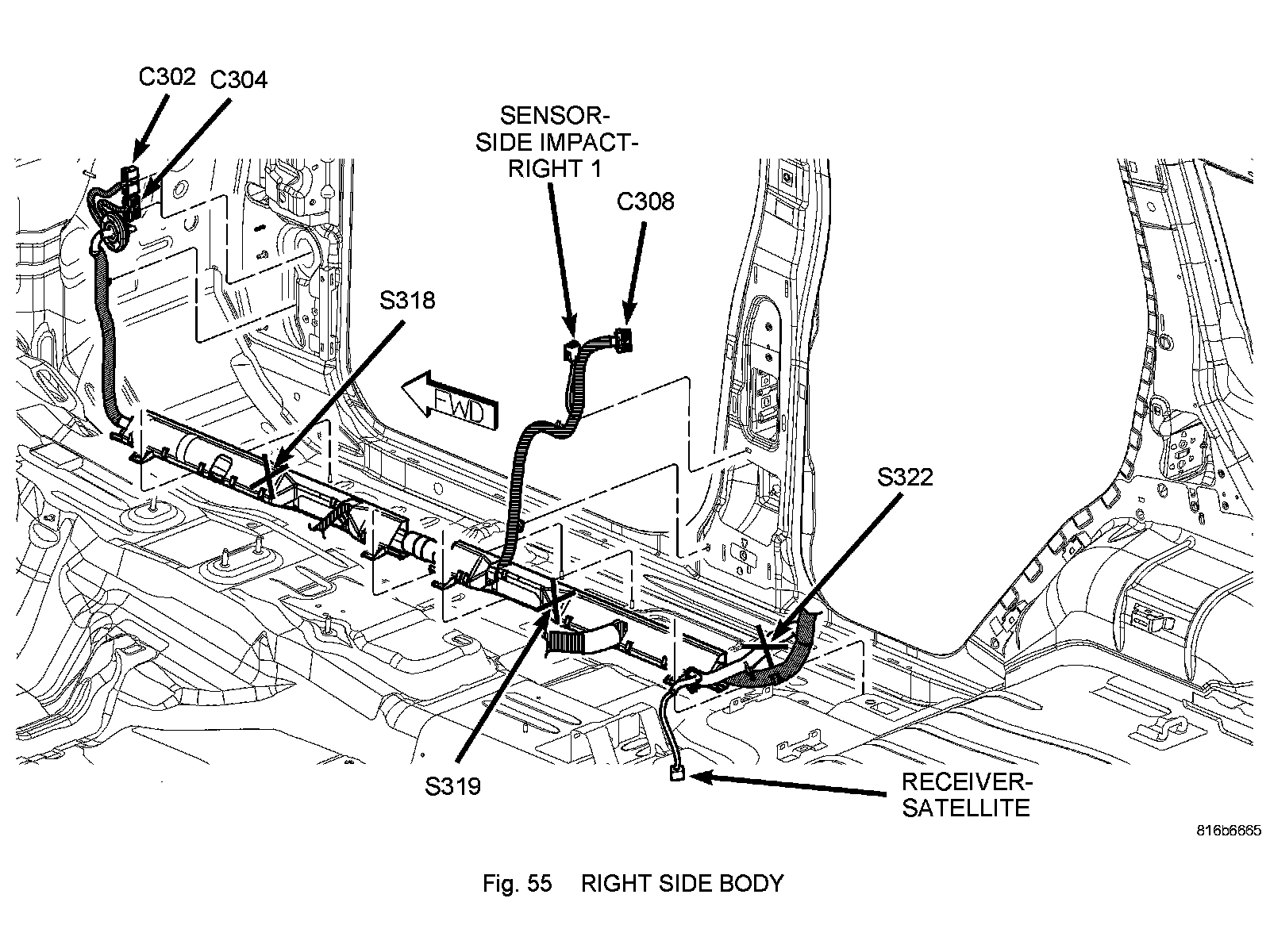

Component Location - 55

Fig. 55:
