Lateral Accelerometer

Component ID: 462
Component : SENSOR-DYNAMICS

Connector:

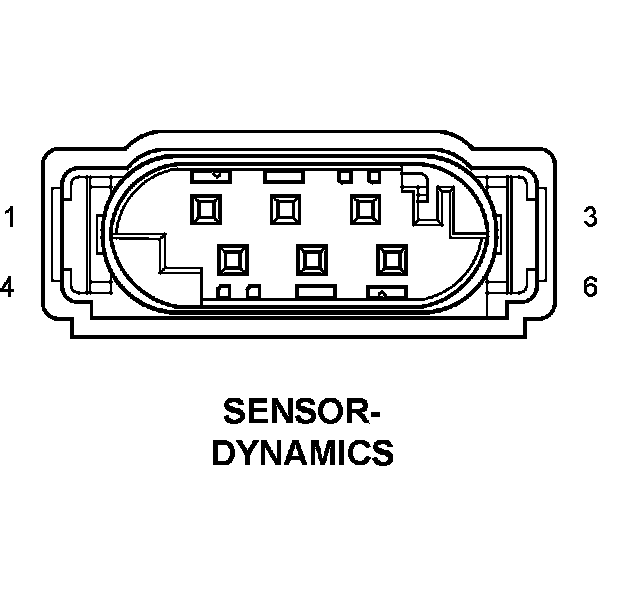

Name : SENSOR-DYNAMICS
Color :
# of pins : 6




Pin Description Circuit
1 DYNAMICS SENSOR LOW DATA LINK D51 20WT/BR
2 DYNAMICS SENSOR HIGH DATA LINK D52 20WT/LB
3 DYNAMICS SENSOR SUPPLY G4 20VT/LB
4 - -
5 DYNAMICS SENSOR GROUND G94 20VT/DB
6 - -

Component Location - 56

Fig. 56:
