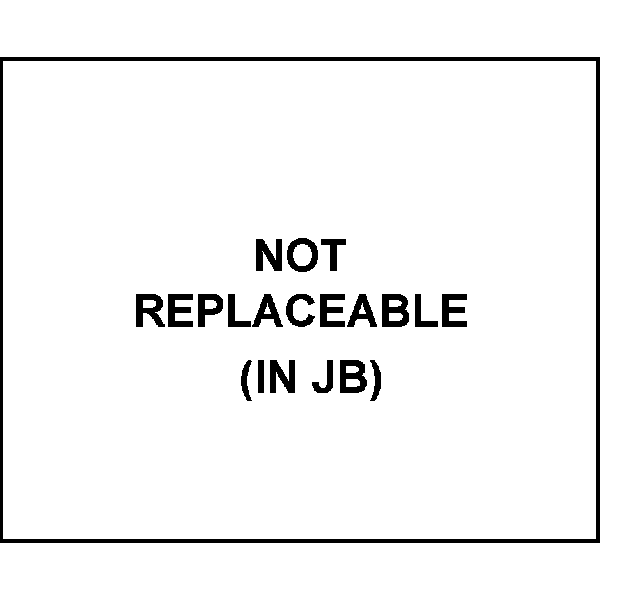

Relay-Run

Component ID: 263
Component : RELAY-RUN

Connector:
Name : RELAY-RUN
Color :
# of pins : 0




30 FUSED B(+) A902 14RD
85 IGNITION RUN RELAY CONTROL F102 20PK/DB
86 FUSED B(+) INTERNAL
87 RUN RELAY OUTPUT INTERNAL
87A - -
