Solenoid-Rear Differential




Component ID: 530
Component : SOLENOID-REAR DIFFERENTIAL

Connector:
Name : SOLENOID-REAR DIFFERENTIAL
Color :
# of pins : 2




Pin Description Circuit
1 SWITCHED BATTERY SOLENOID SUPPLY T301 18DG/YL
2 REAR DIFFERENTIAL SOLENOID CONTROL T312 18YL/VT

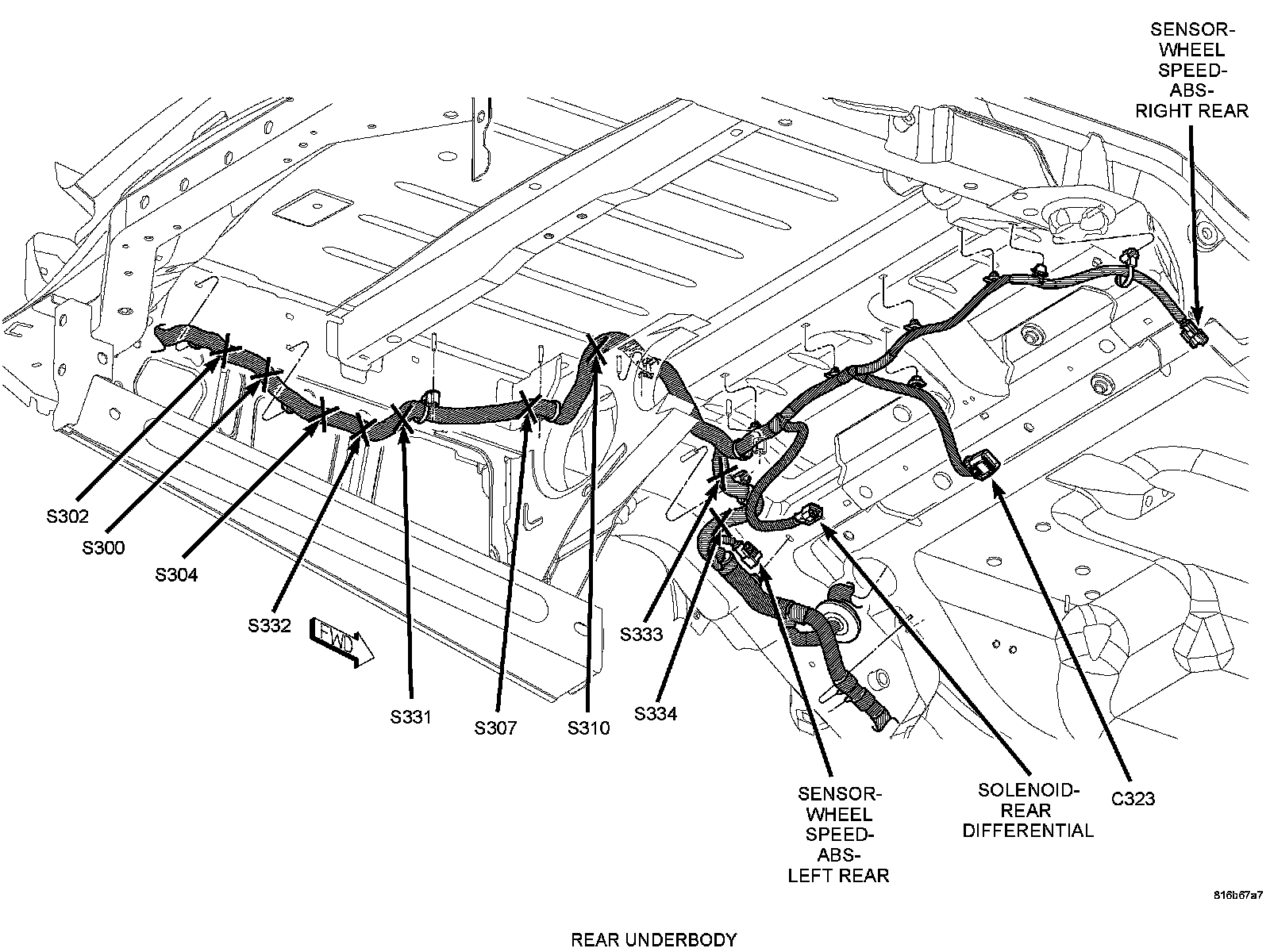

Component Location - 69
