Trunk / Liftgate Closer Module

Component ID: 179

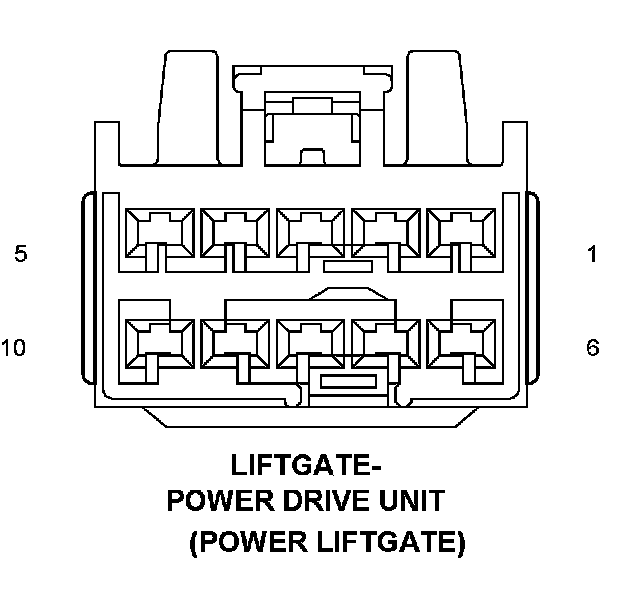

Component : LIFTGATE-POWER DRIVE UNIT

Connector:
Name : LIFTGATE-POWER DRIVE UNIT
Color :
# of pins : 10
Qualifier : (POWER LIFTGATE)




Pin Description Circuit
1 LIFTGATE OPEN DRIVER Q88 14TN/BR
2 POSITION SENSOR SUPPLY Q203 20OR/TN
3 LOGIC GROUND Q901 20OR/VT
4 LIFTGATE CLUTCH DRIVER Q201 18OR/LG
5 LOGIC GROUND Q901 20OR/VT
6 LIFTGATE CLOSE DRIVER Q89 14TN/OR
7 POSITION SENSOR SIGNAL 1 Q204 20OR/DG
8 POSITION SENSOR SIGNAL 2 Q205 20OR/DB
9 GROUND Z800 18BK
10 LIFTGATE FULL OPEN SWITCH SENSE Q51 20OR
