Sensor-Wheel Speed-ABS-Left Front

Component ID: 516
Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

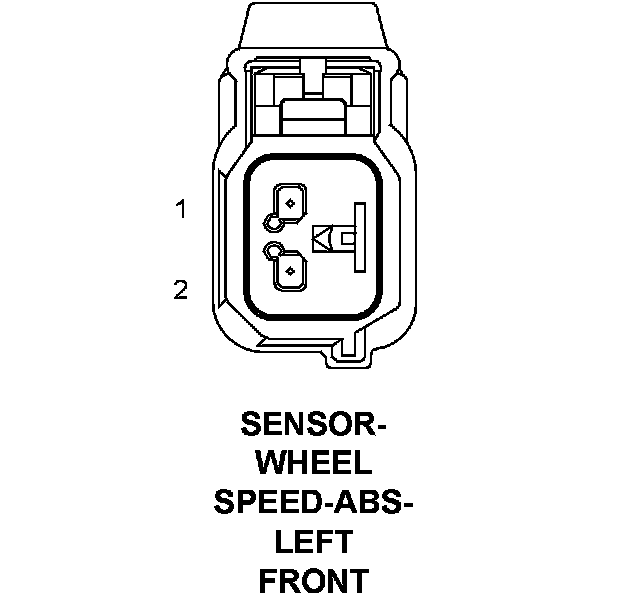

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color :
# of pins : 2




Pin Description Circuit
1 LEFT FRONT WHEEL SPEED SENSOR SUPPLY B9 18DG/LG
2 LEFT FRONT WHEEL SPEED SENSOR SIGNAL B8 18DG/TN

Component Location - 1
