Sensor-Wheel Speed-ABS-Right Front

Component ID: 518
Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

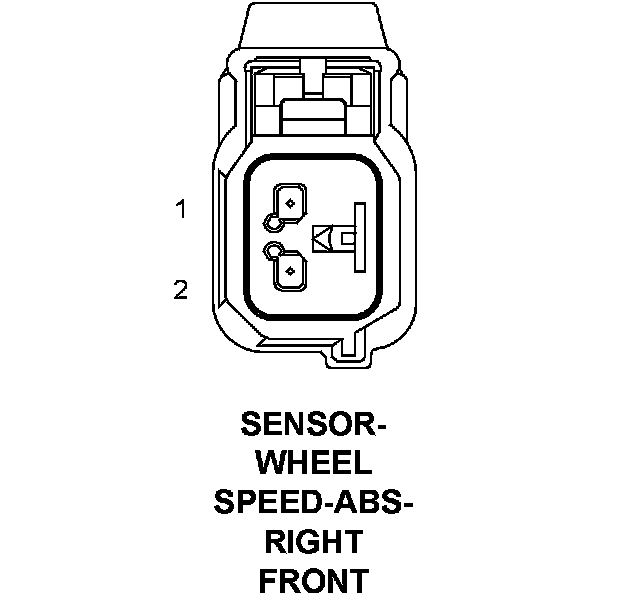

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color :
# of pins : 2




Pin Description Circuit
1 RIGHT FRONT WHEEL SPEED SENSOR SUPPLY B7 18DG/VT
2 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL B6 18DG/TN

Component Location - 1
