Refrigerant Pressure Sensor / Switch: Locations

Component ID: 567
Component : TRANSDUCER-A/C PRESSURE

Connector:
Name : TRANSDUCER-A/C PRESSURE
Color : GRAY
# of pins : 4




Pin Description Circuit
1 FCM SENSOR RETURN C918 20BK/LB
2 5 VOLT SUPPLY F891 20PK/GY
3 A/C PRESSURE SIGNAL C18 20LB/BR
4 - -

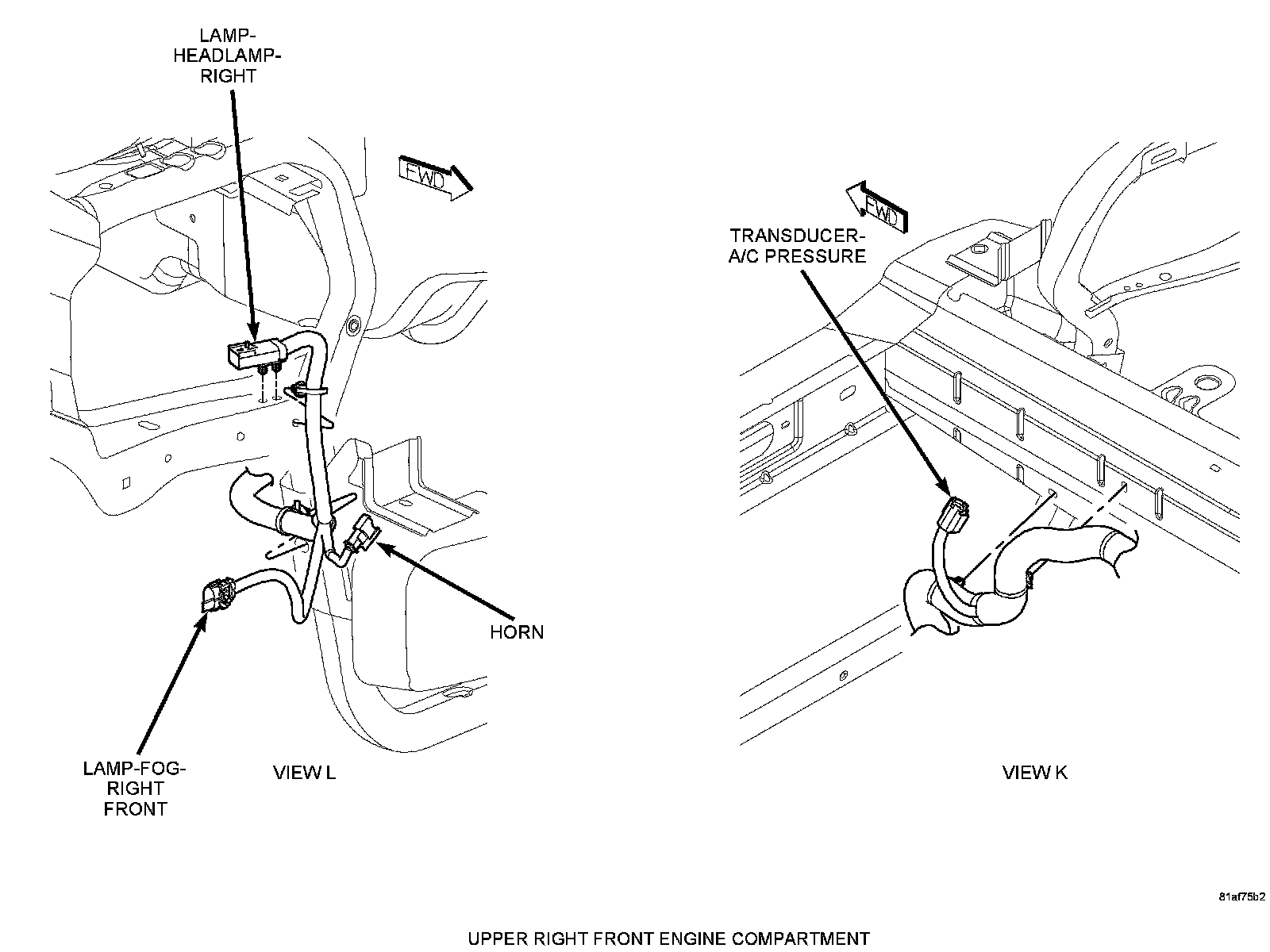

Component Location - 9
