Installation

5.7L

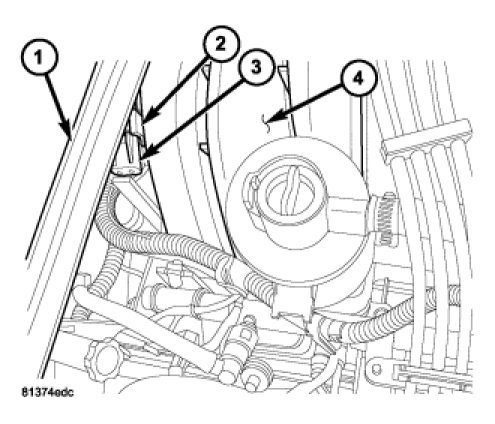

1. Clean MAP sensor mounting hole at intake manifold.




2. Check MAP sensor O-ring seal for cuts or tears.

3. Position sensor into manifold (2).

4. Rotate sensor 1/4 turn clockwise for installation (3).

5. Connect electrical connector.
