NAG1 Automatic Transmission
SPECIFICATIONS
Gear Ratios:

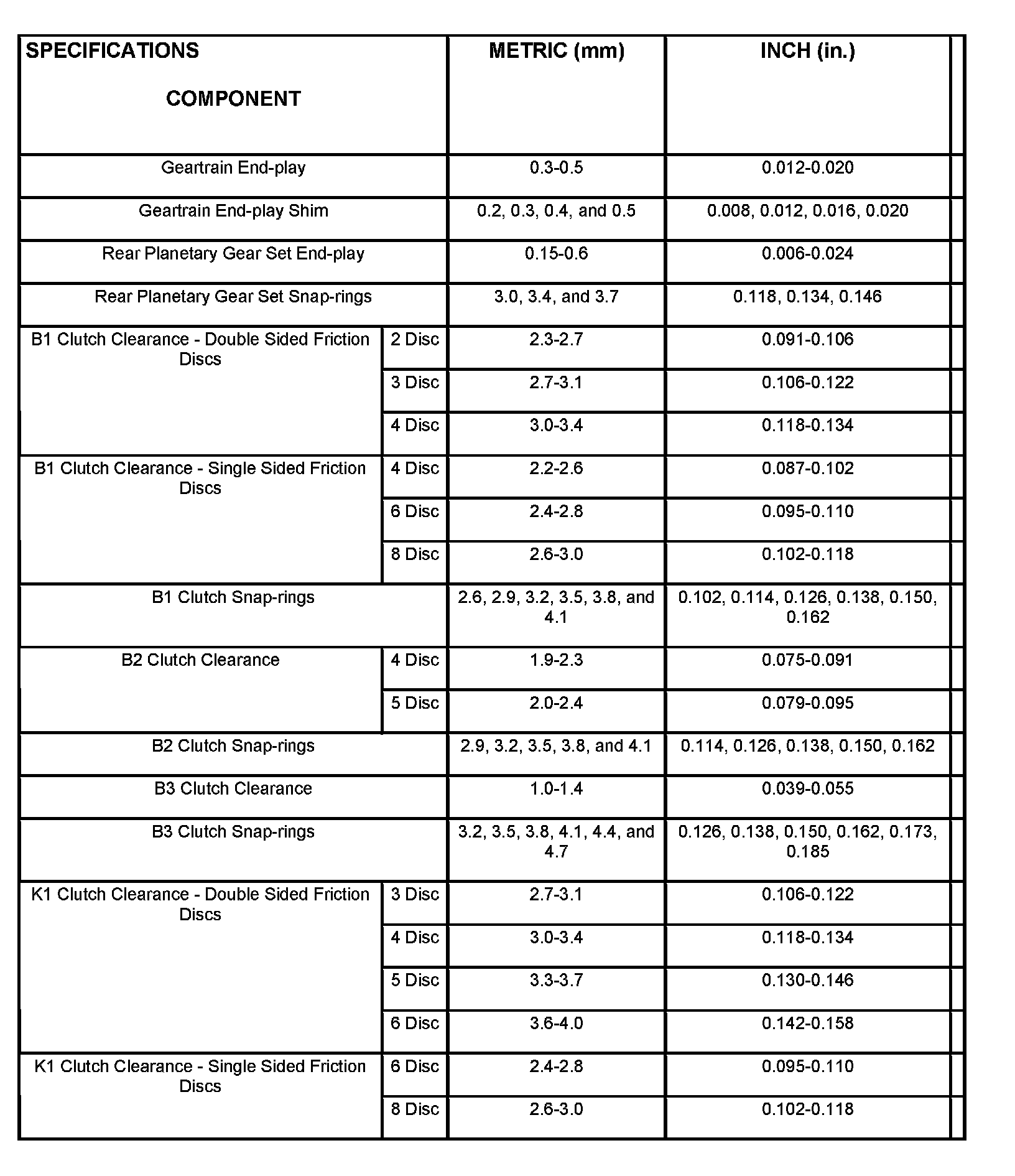

Specifications (Part 1):

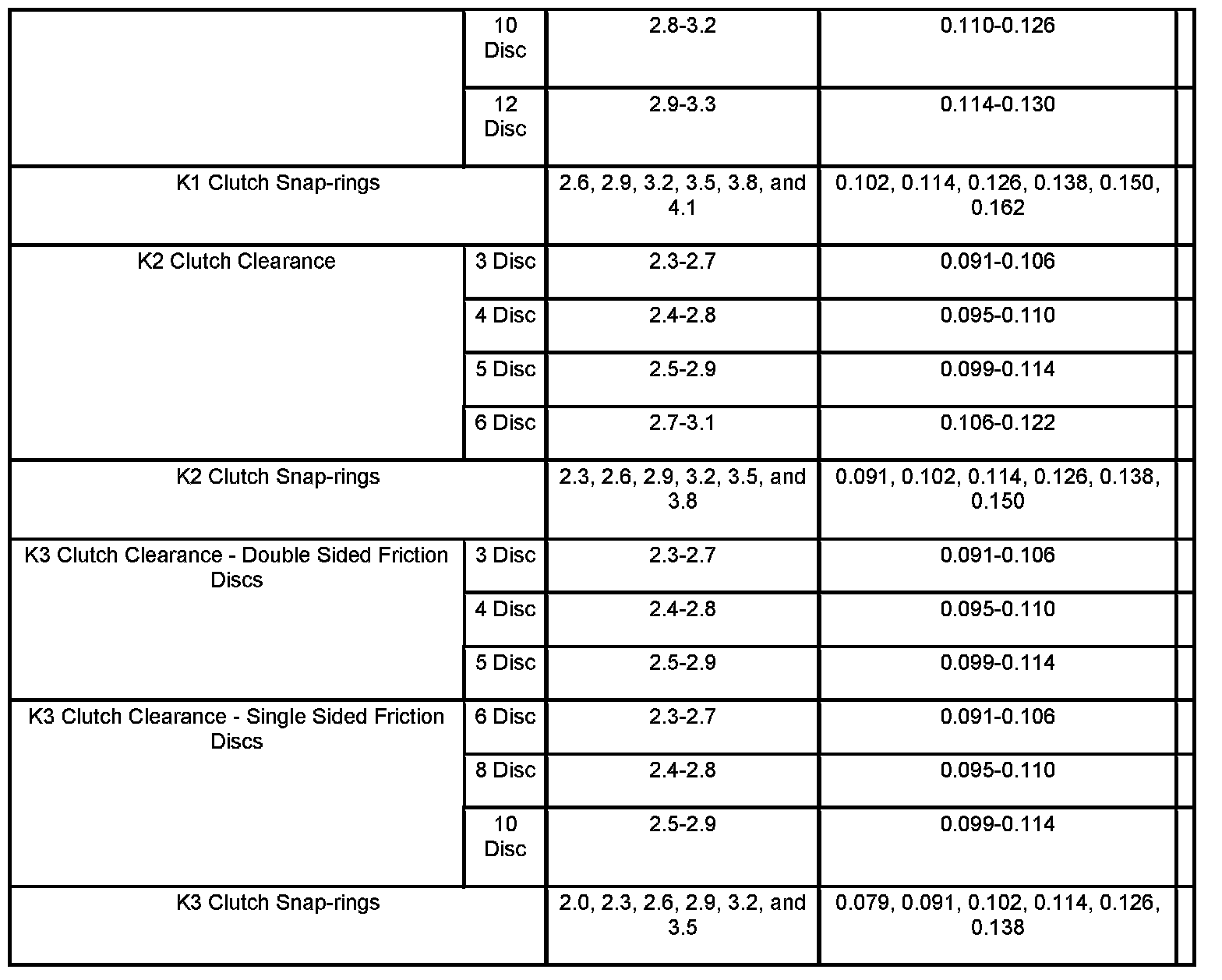

Specifications (Part 2):

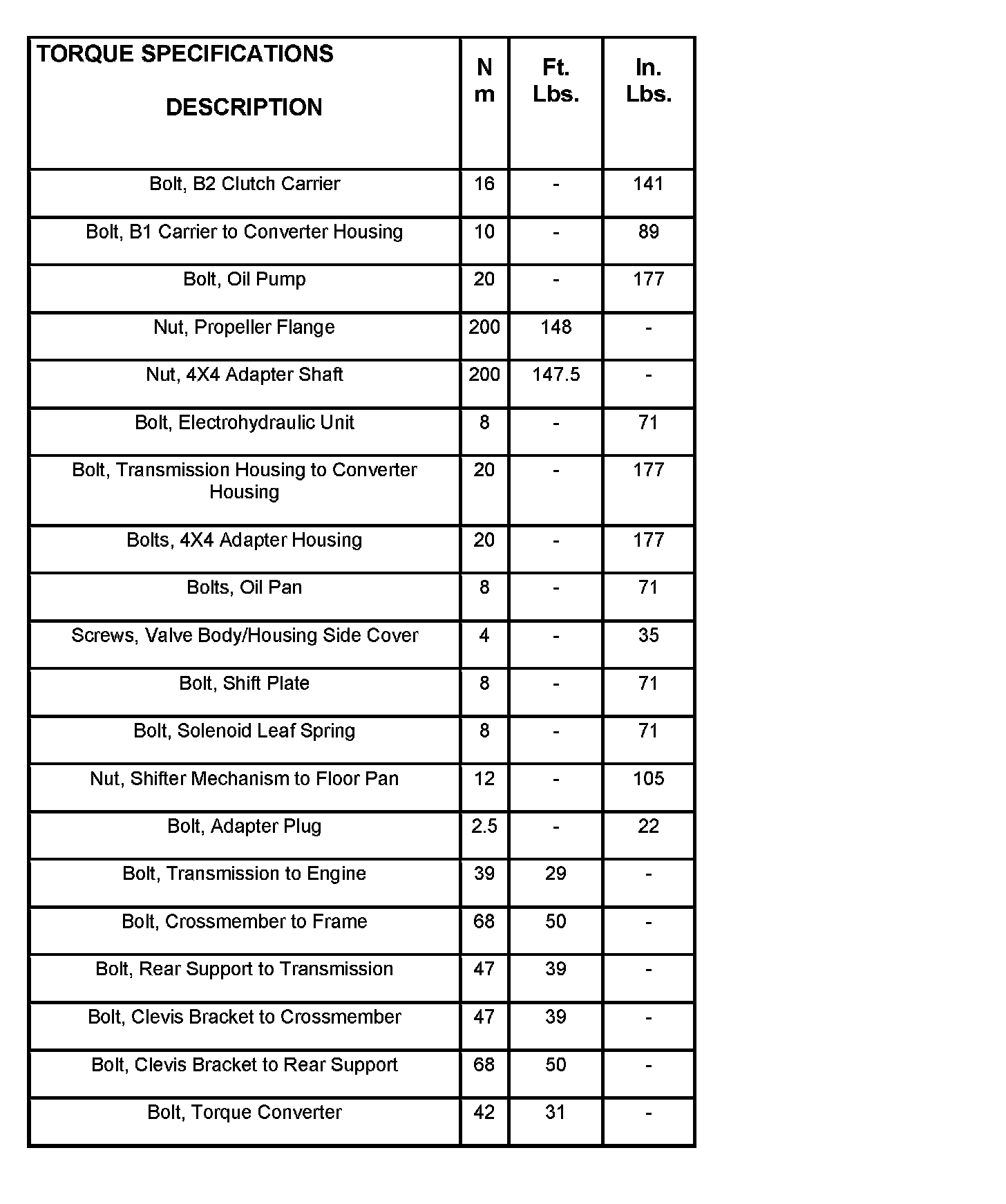

Torque Specifications:
