Installation

INSTALLATION

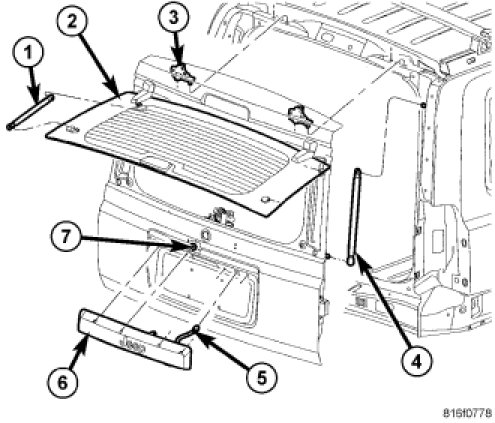

NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.

1. Position liftgate glass on vehicle.

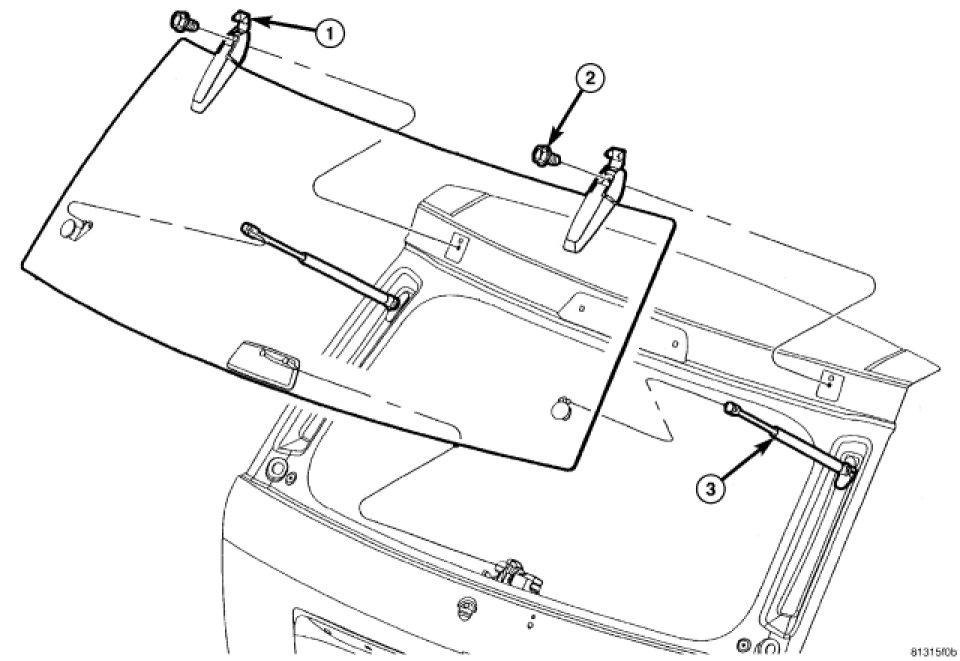

2. Install hinge bolts (2). Center liftgate. Tighten hinge bolts to 7 Nm (60 in. lbs.).




3. Open and support the glass (2).

4. Install support cylinders (1).

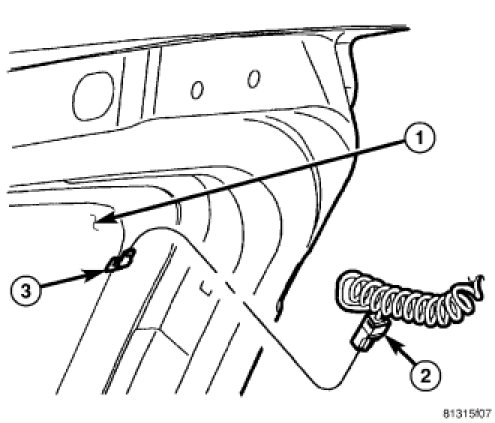

5. Connect heated glass electrical connector (2).

6. Adjust liftgate glass as necessary. Refer to Body and Frame / Specifications.
