Installation

3.7L/4.7L

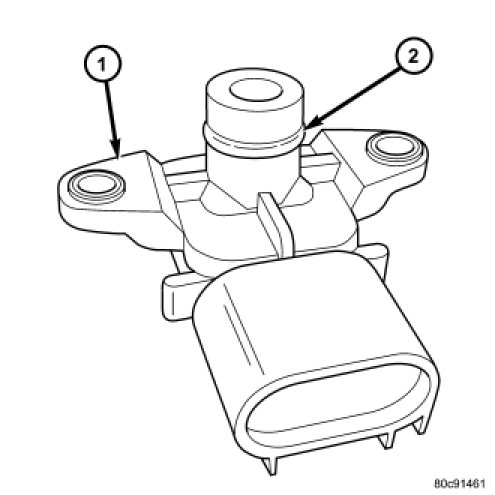

The Manifold Absolute Pressure (MAP) sensor is mounted into the front of the intake manifold. An O-ring (2) is used to seal the sensor to the intake manifold.

1. Clean MAP sensor mounting hole at intake manifold.

2. Check MAP sensor O-ring seal for cuts or tears.

3. Position sensor into manifold.

4. Install MAP sensor mounting bolts (screws). Refer to Torque Specifications.

5. Connect electrical connector.
