Ignition Switch: Locations

Component ID: 544
Component : SWITCH-IGNITION

Connector:

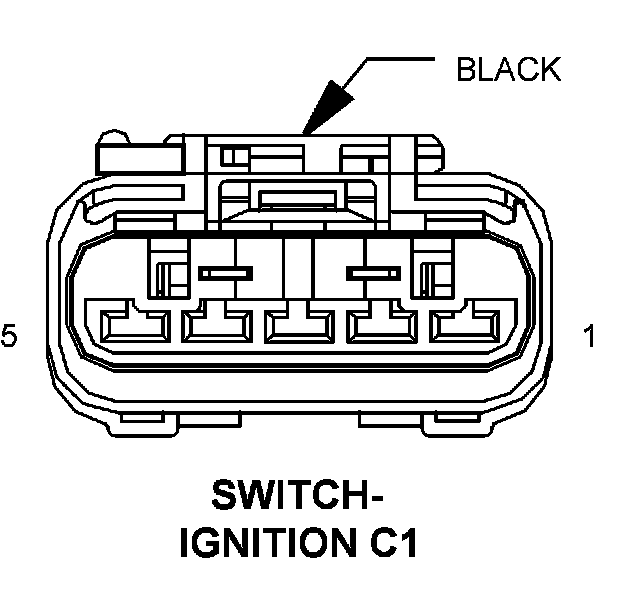

Name : SWITCH-IGNITION C1
Color : BLACK
# of pins : 5




Pin Description Circuit
1 IGNITION SWITCH SENSE RETURN G900 20VT/OR
2 IGNITION SWITCH SENSE G20 20VT/BR
3 IGNITION SWITCH OUTPUT (RUN-START) F944 16PK/LG
4 IGNITION SWITCH OUTPUT (START) F26 16PK/OR
5 FUSED B(+) A106 16LB/RD

Component Location - 40

Fig. 39:

Connector:

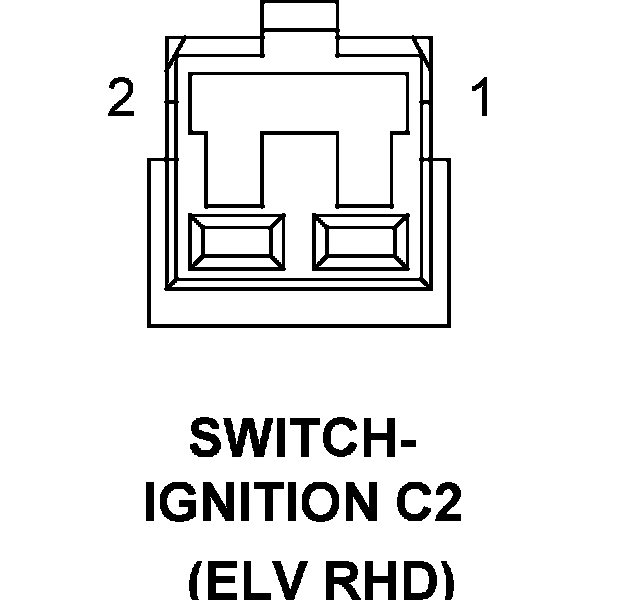

Name : SWITCH-IGNITION C2
Color :
# of pins : 2
Qualifier : (ELV RHD)




Pin Description Circuit
1 IGNITION SWITCH FEED A306 20RD/VT
2 FUSED B(+) A935 20RD

Component Location - 40

Fig. 39:
