Module-Hands Free

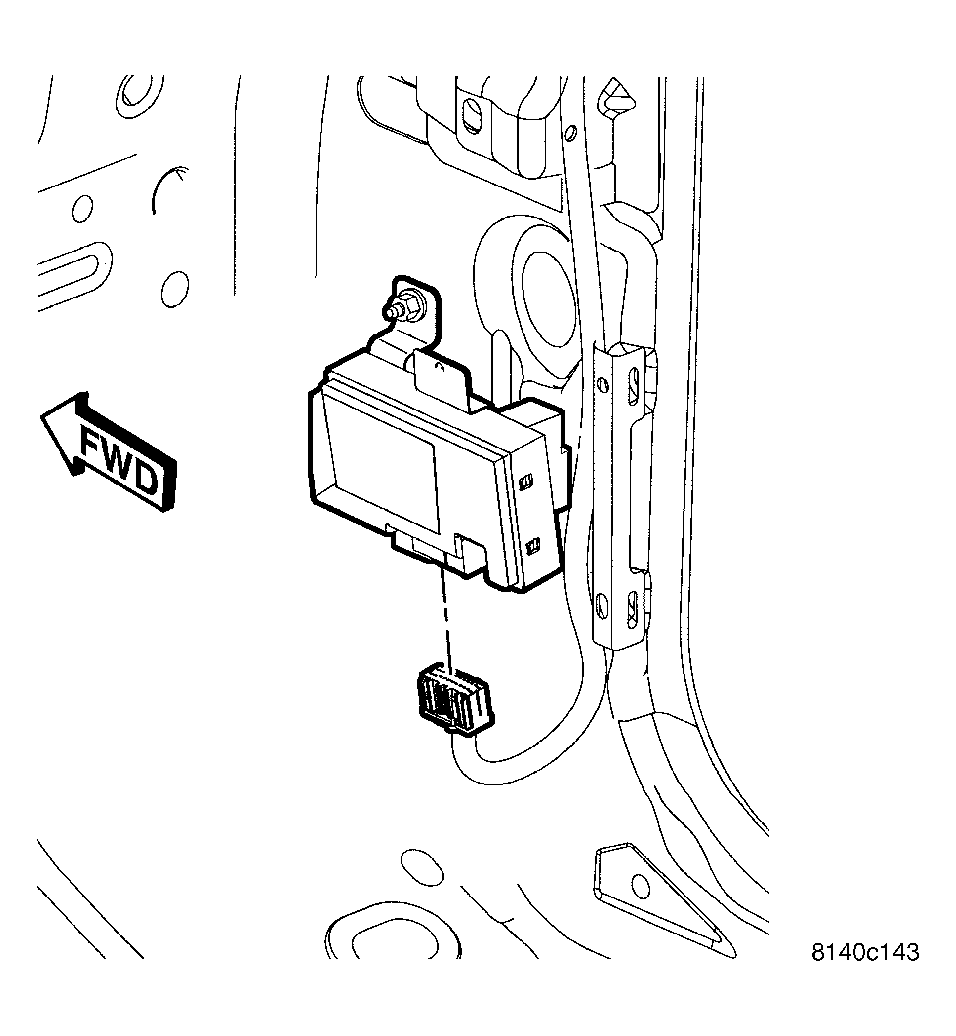

Fig 1: Locating Hands Free Module Electrical Harness Connector
GC0029272Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the right side cowl panel trim.
  3. Disconnect the electrical harness connector.

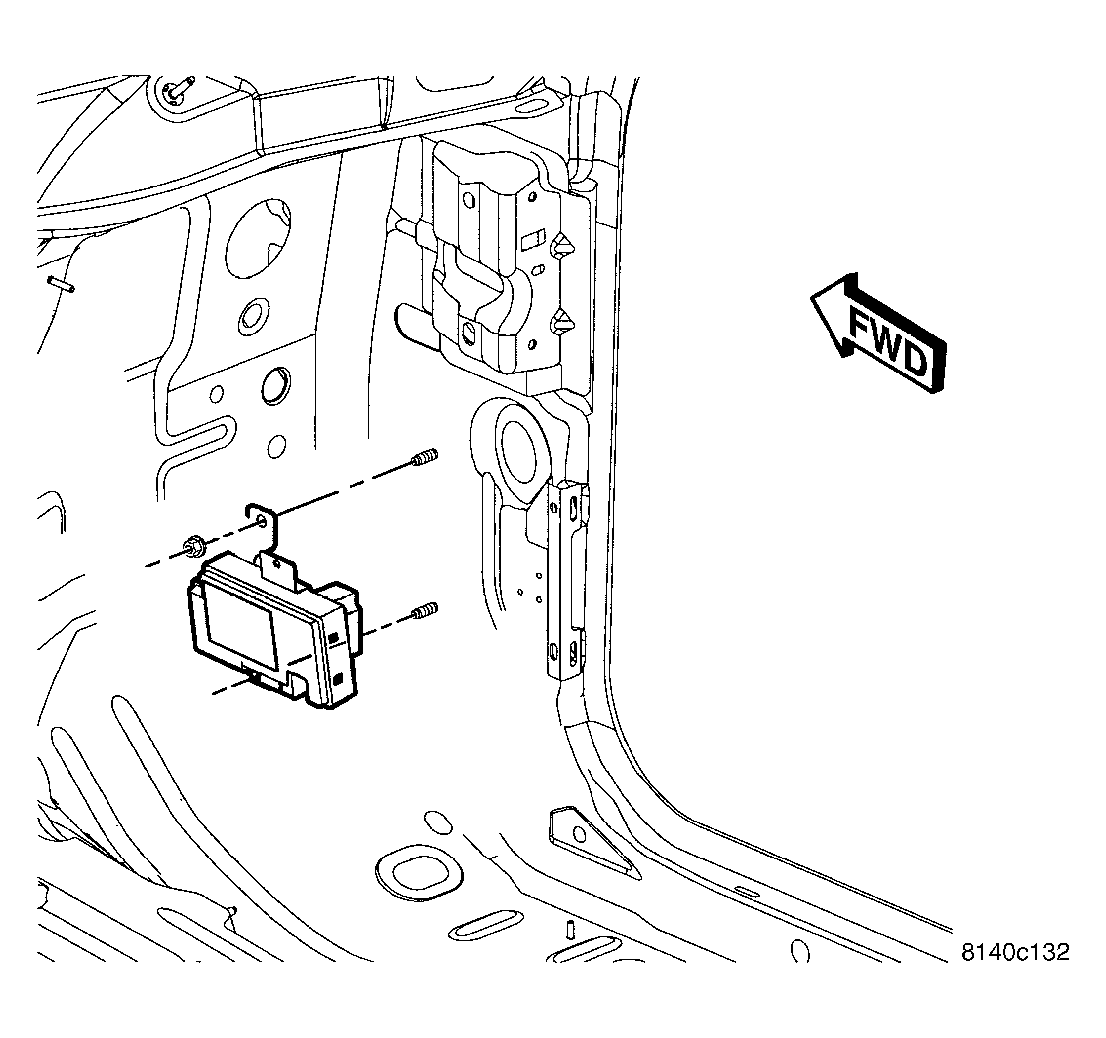

    Fig 2: Removing/Installing Hands Free Module
    GC0029271Courtesy of CHRYSLER LLC
  4. Remove the mounting bracket fasteners.
  5. Remove the hands free module fasteners from the mounting bracket and remove module.
