Sunroof - Service Information: Assembly-Module: Removal: Assembly-Module

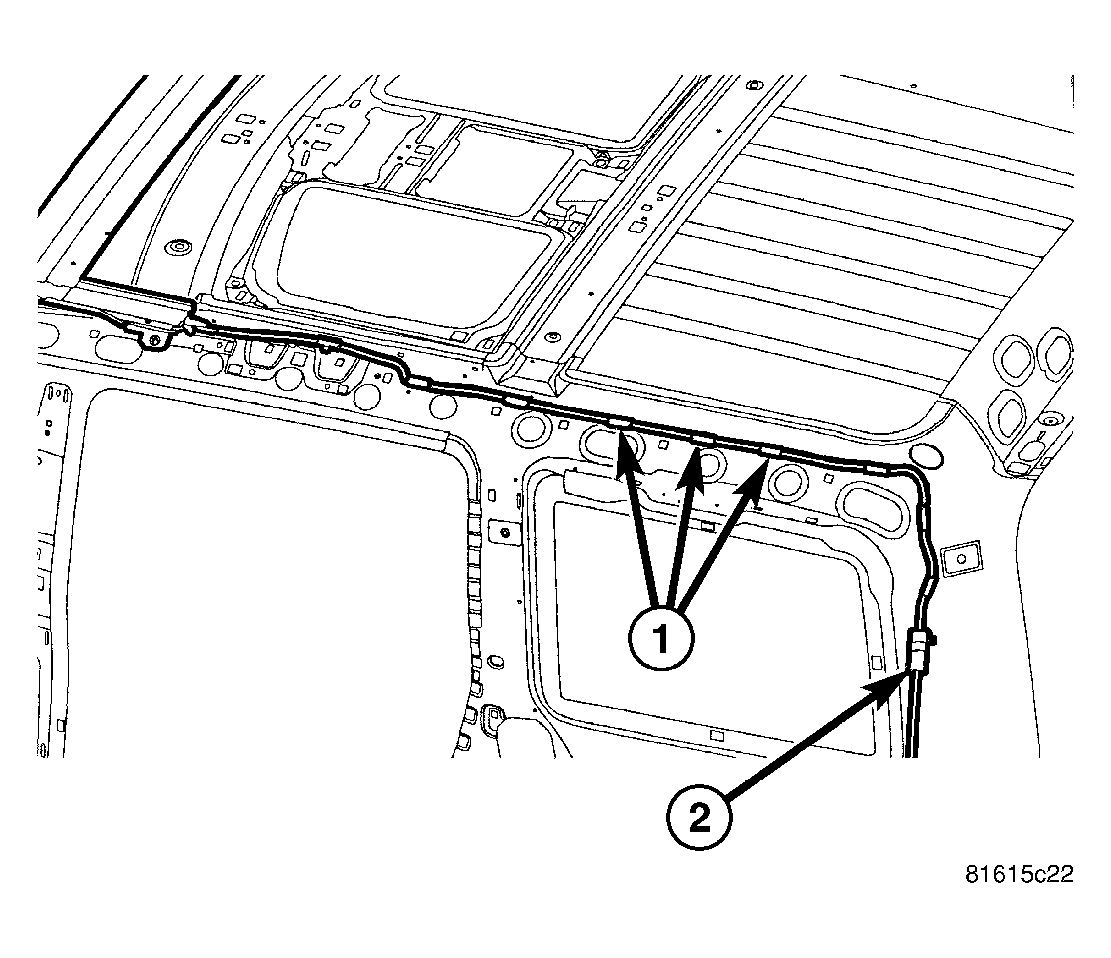

Fig 1: Identifying Sunroof Wire Harness Electrical Connector & Harness Support Clips

Courtesy of CHRYSLER LLC

WARNING: The Excessive Force Limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. Refer to STANDARD PROCEDURE for the appropriate procedure.

1. Move glass panel to the fully closed position.
2. Disconnect and isolate the battery negative cable.
3. Remove headliner. See REMOVAL .
4. Disconnect the sunroof wire harness electrical connector (2) and separate the harness support clips (1) from the body.

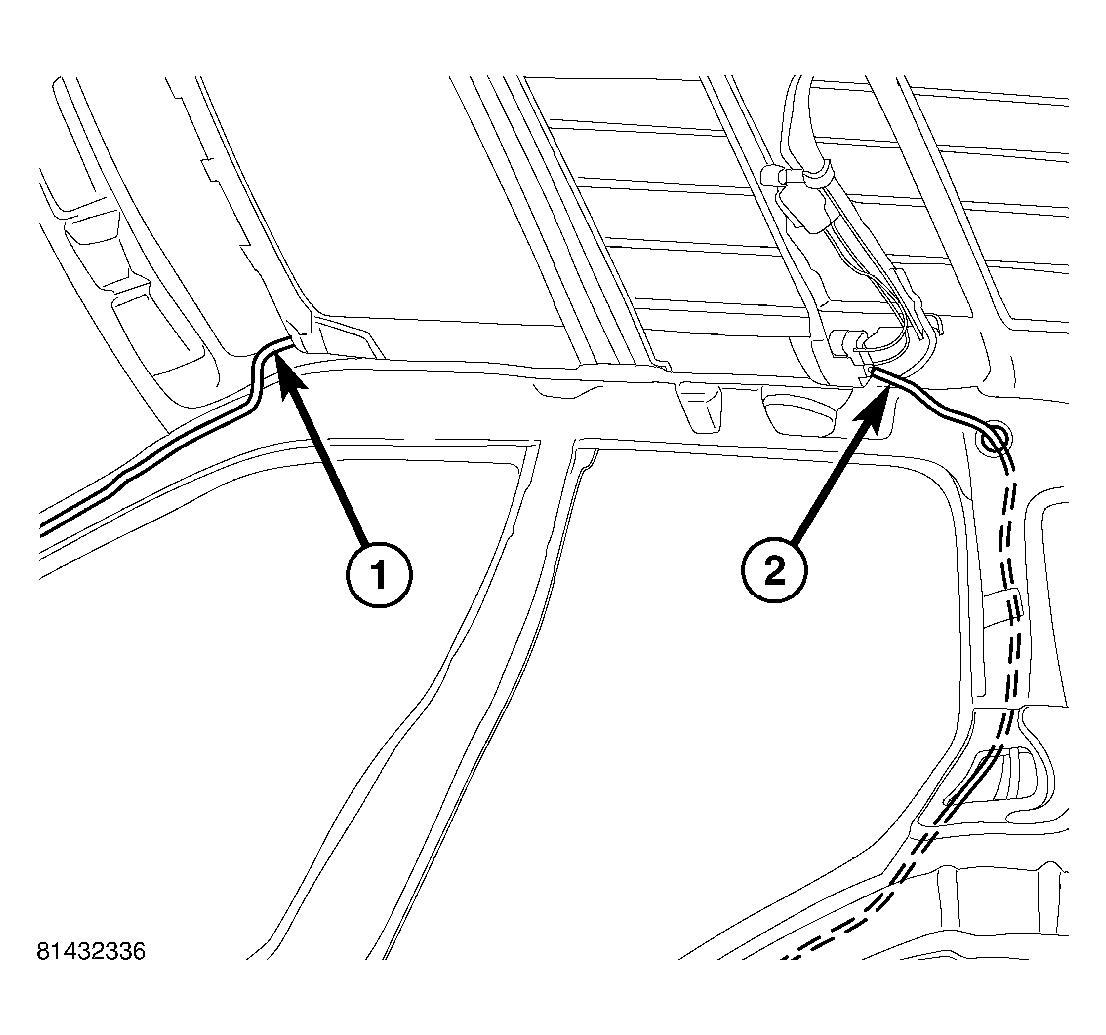

   Fig 2: Identifying Front & Rear Drain Tubes

   Courtesy of CHRYSLER LLC
5. Disconnect the front (1) and rear (2) drain tubes from sunroof housing.

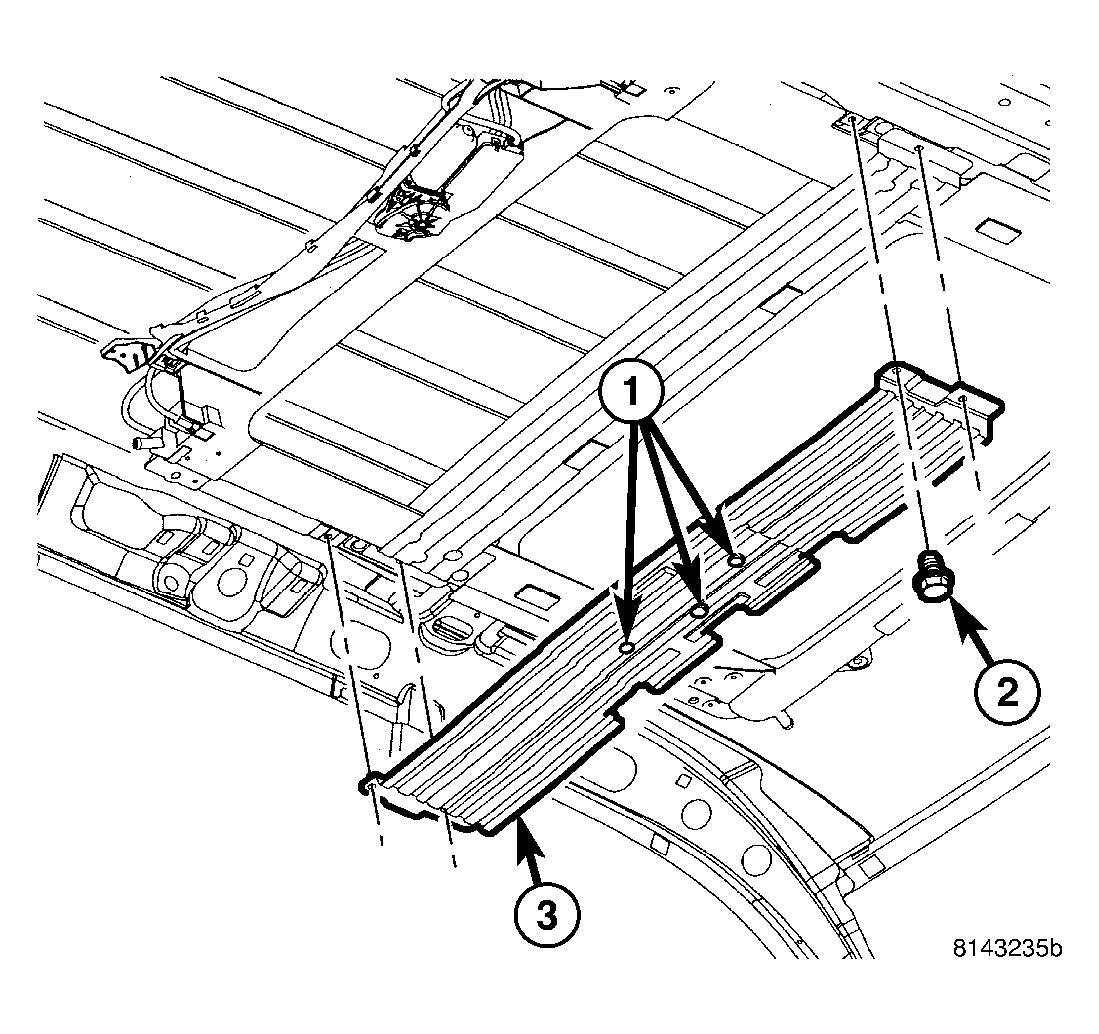

   Fig 3: Identifying DVD Support Bracket And Fasteners

   Courtesy of CHRYSLER LLC
6. Remove the fasteners (1) and (2) and remove the DVD support bracket, if equipped.

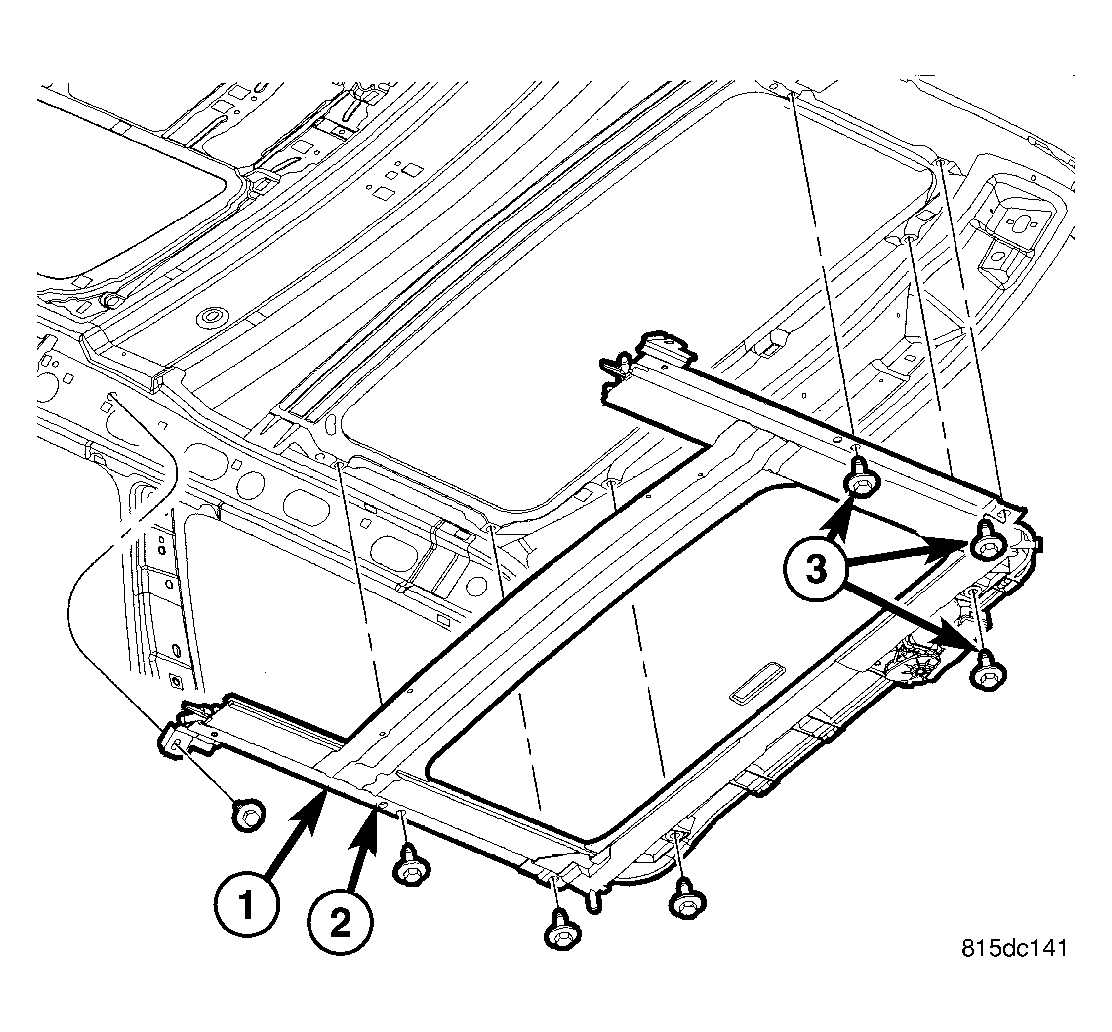

   Fig 4: Identifying Sunroof Assembly

   Courtesy of CHRYSLER LLC
7. Remove the front (2) and rear (4) fasteners.
8. With the aid of a helper, support the sunroof and remove the fasteners (3) attaching sunroof assembly to roof panel.
9. Remove the sunroof from vehicle.
