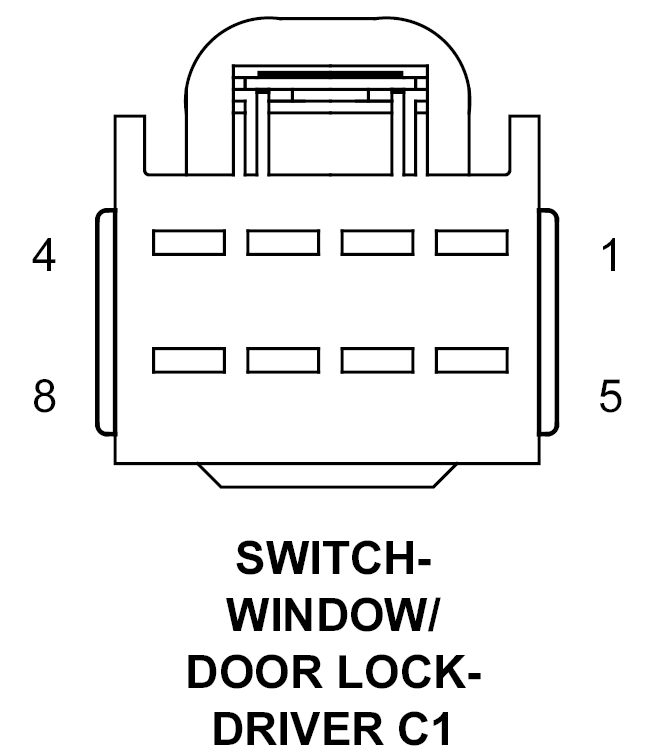

Driver Window Switch/Door Lock Switch Connector End View (C1)
SWITCH-WINDOW/DOOR LOCK-DRIVER C1 - 8-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A929 16RD/DB | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 2 | Q611 16OR/GY | MASTER WINDOW SWITCH LEFT REAR (DOWN) |
| 3 | Q411 16OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 4 | Q612 16OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 5 | Q15 16OR/LB | WINDOW LOCK OUT SWITCH OUTPUT |
| 6 | Z911 16BK | GROUND |
| 7 | - | - |
| 8 | Q412 16OR/LB | MASTER WINDOW SWITCH RIGHT REAR (UP) |
