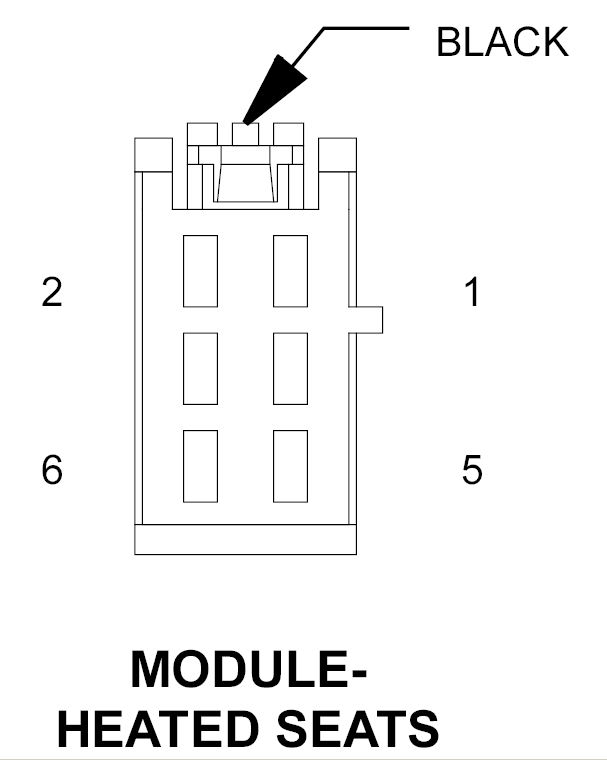

Heated Seats Module Connector End View
MODULE-HEATED SEATS - BLACK 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z917 14BK | GROUND |
| 2 | A33 16BK/RD | FUSED B(+) (LHD) |
| 2 | A33 16RD/YL | FUSED B(+) (RHD) |
| 3 | P187 16LG/BR | LEFT SEAT HEATER B(+) DRIVER (LHD) |
| 3 | P188 16LG/VT | RIGHT SEAT HEATER B(+) DRIVER (RHD) |
| 4 | P188 16LG/VT | RIGHT SEAT HEATER B(+) DRIVER (LHD) |
| 4 | P187 16LG/BR | LEFT SEAT HEATER B(+) DRIVER (RHD) |
| 5 | D54 20WT | CAN B BUS (-) |
| 6 | D55 20WT/OR | CAN B BUS (+) |
