Input Speed Sensor (RFE) Connector End View

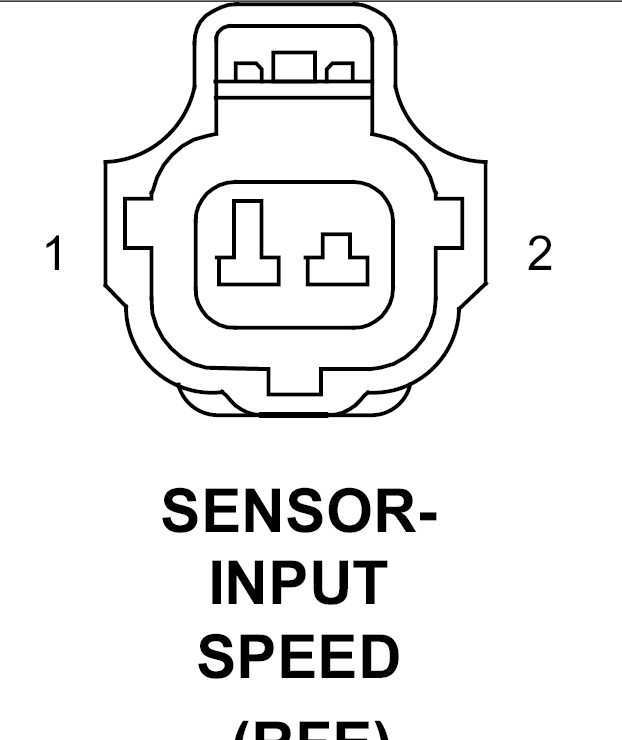

SENSOR-INPUT SPEED - BLACK 2-WAY(RFE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T52 20DG/WT
INPUT SPEED SENSOR SIGNAL
2
T13 20DG/VT
SENSOR GROUND
Courtesy of CHRYSLER CORP.
