Right Speed Control Switch Connector End View

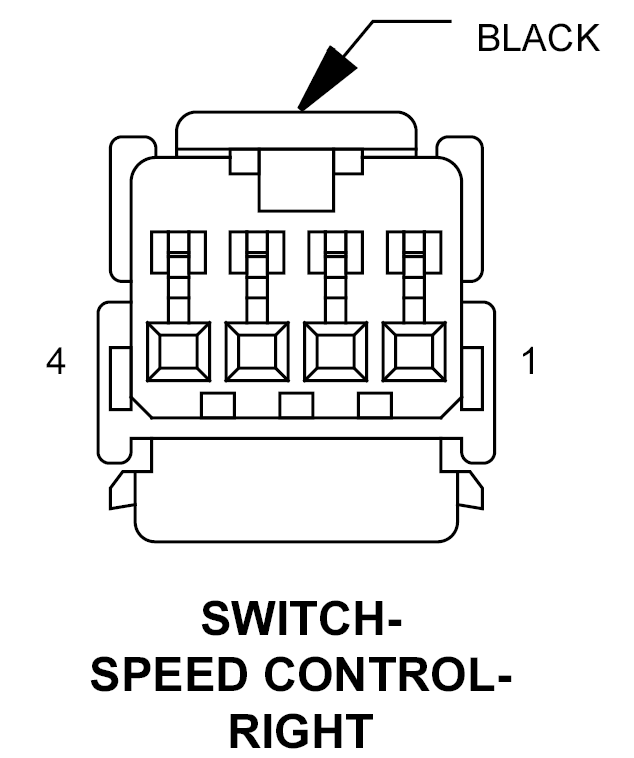

SWITCH-SPEED CONTROL-RIGHT - BLACK 4-WAY

GXK780435Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 V372 20OR/VT S/C SWITCH NO. 2 SIGNAL
2 V397 20VT/BR S/C SWITCH RETURN
3 V371 20VT/OR S/C SWITCH NO. 1 SIGNAL
4 - -
