Speed Control Servo Connector End View

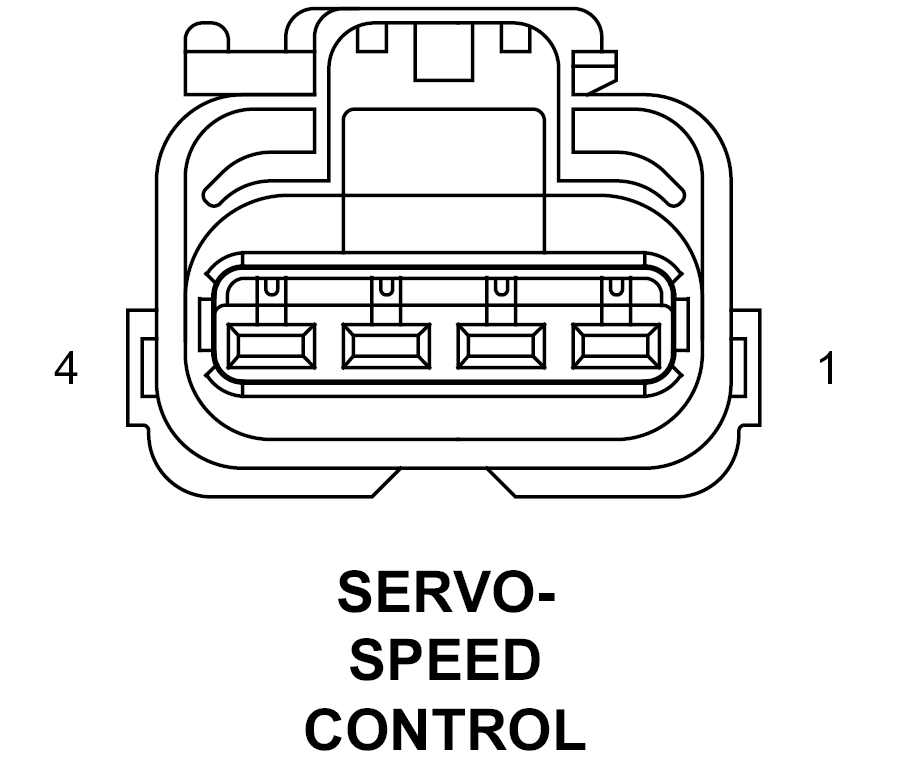

SERVO-SPEED CONTROL - 4-WAY

GXK780391Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 V36 20VT/YL S/C VACUUM SOL CONTROL
2 V35 20VT/OR S/C VENT SOL CONTROL
3 V30 20VT/WT S/C BRAKE SWITCH OUTPUT
4 Z384 20BK GROUND
