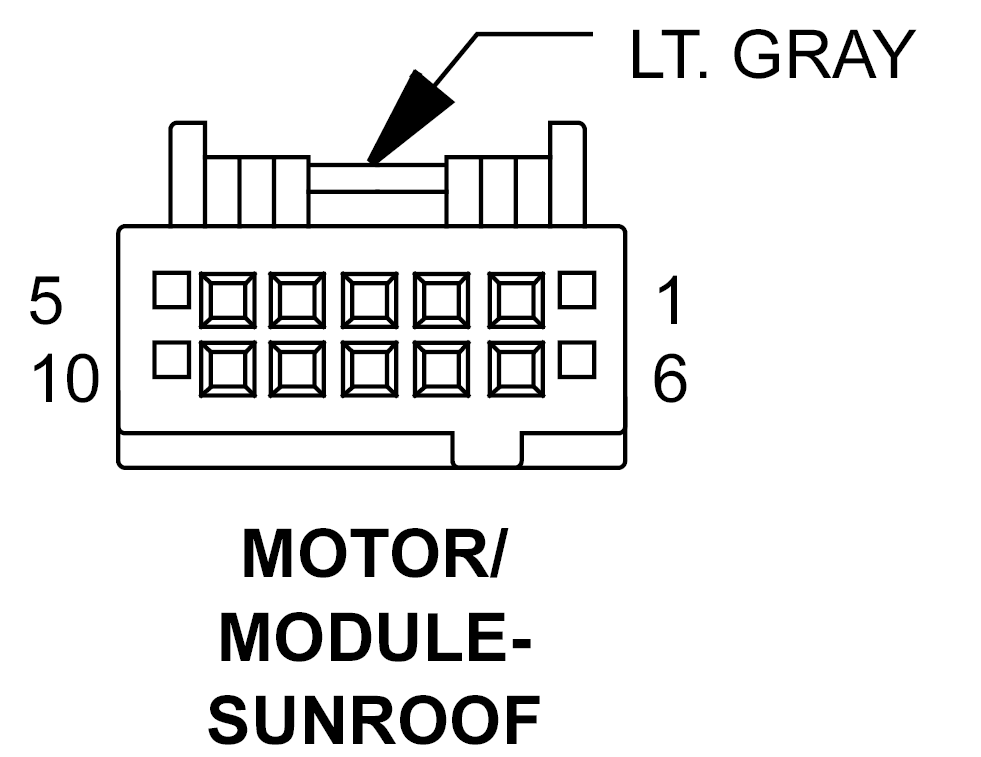

Sunroof Motor Module Connector End View
MOTOR/MODULE-SUNROOF - LT. GRAY 10-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | Q4 20OR/YL | SUNROOF VENT SWITCH SENSE |
| 3 | Q3 20OR/TN | SUNROOF OPEN SWITCH SENSE |
| 4 | D54 20WT | CAN B BUS (-) |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | Z914 18BK | GROUND |
| 7 | Q5 20OR/LB | SUNROOF CLOSE SWITCH SENSE |
| 8 | A932 18RD | FUSED B(+) |
| 9 | - | - |
| 10 | Q6 20OR/LG | SUNROOF SWITCH SUPPLY |
