Traffic Information Receiver Module Connector End View (C3)

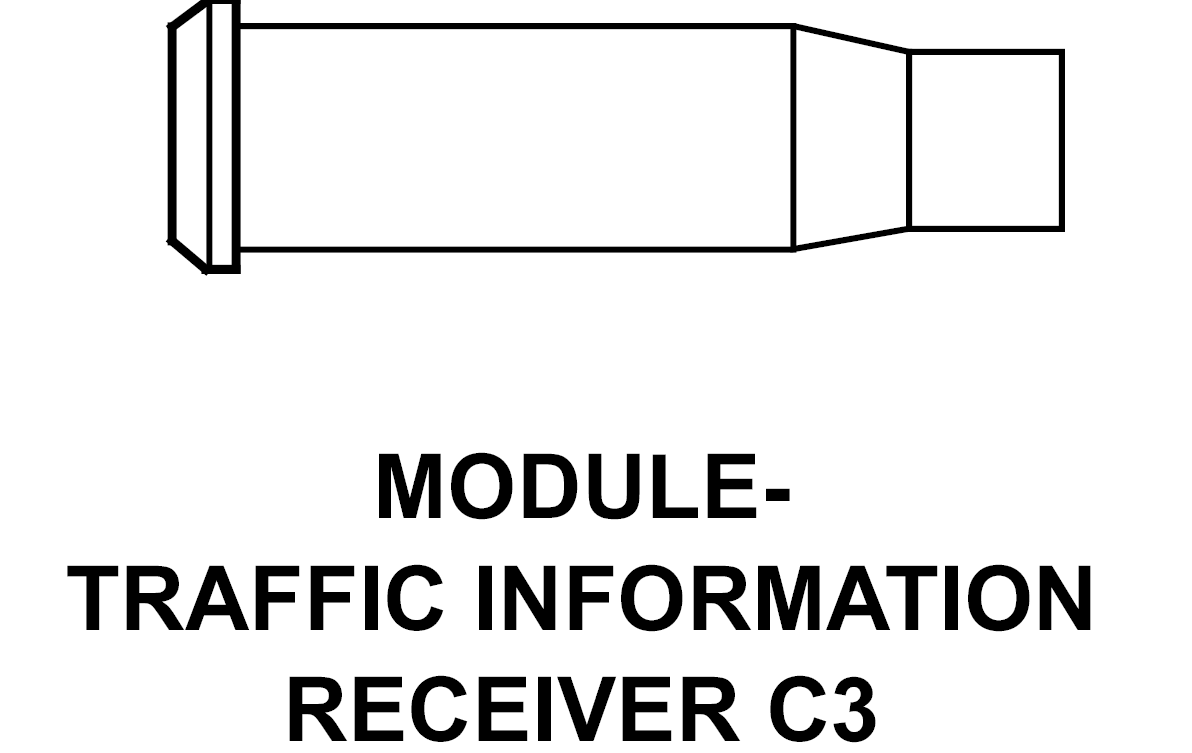

MODULE-TRAFFIC INFORMATION RECEIVER C3 - 2-WAY

GXK780265Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 D6 AM/FM COAX 2
2 D932 WT/YL COAX SHIELD 2
