Trailer Tow Module Connector End View (C2)

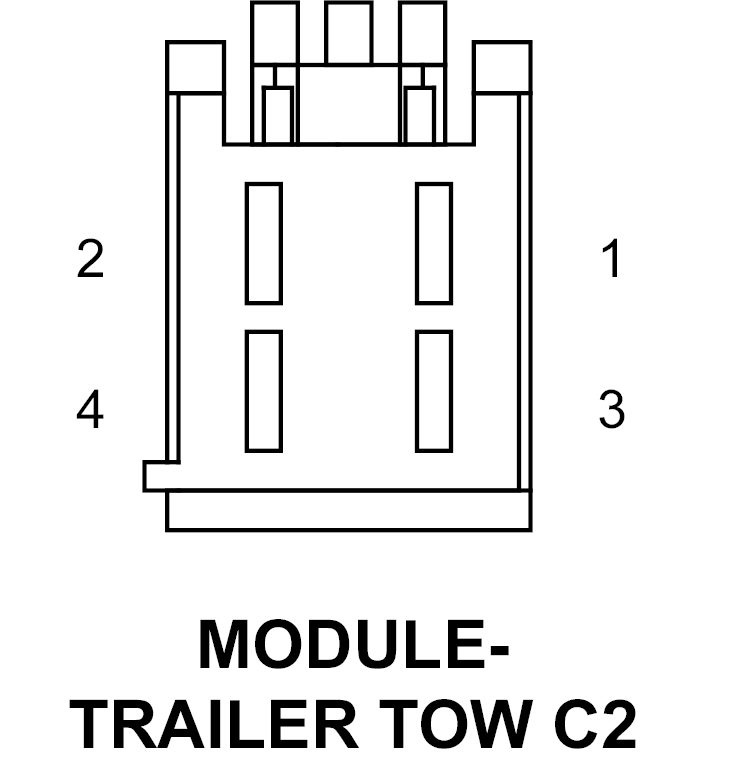

MODULE-TRAILER TOW C2 - 4-WAYFEMALE

GXK780266Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A922 16RD FUSED B(+)
2 - -
3 Z923 14BK GROUND
4 - -
