Trailer Tow Module Connector End View (C3)

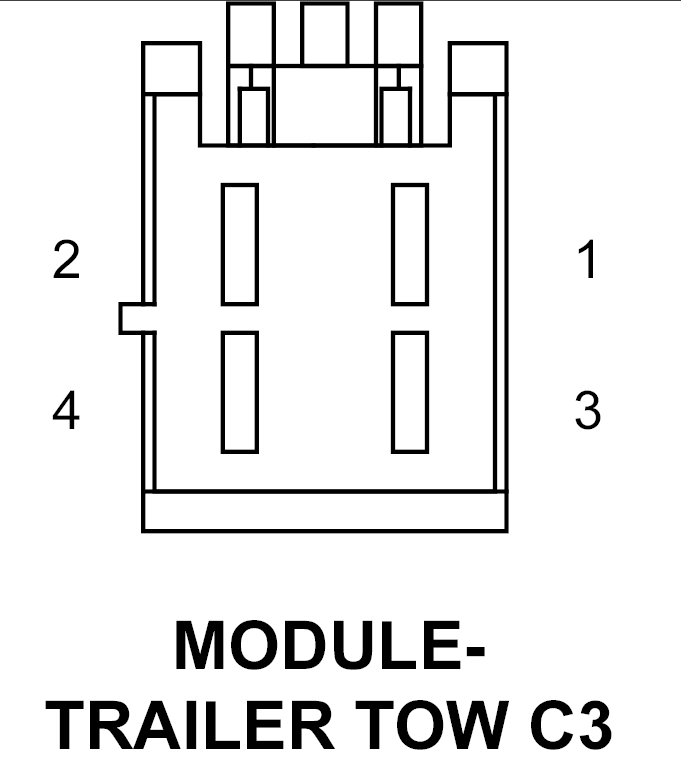

MODULE-TRAILER TOW C3 - 4-WAYFEMALE

GXK780267Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 L70 18WT/GY FUSED PARK LAMP RELAY OUTPUT
3 - -
4 L7 18WT/YL FUSED PARK LAMP RELAY OUTPUT
