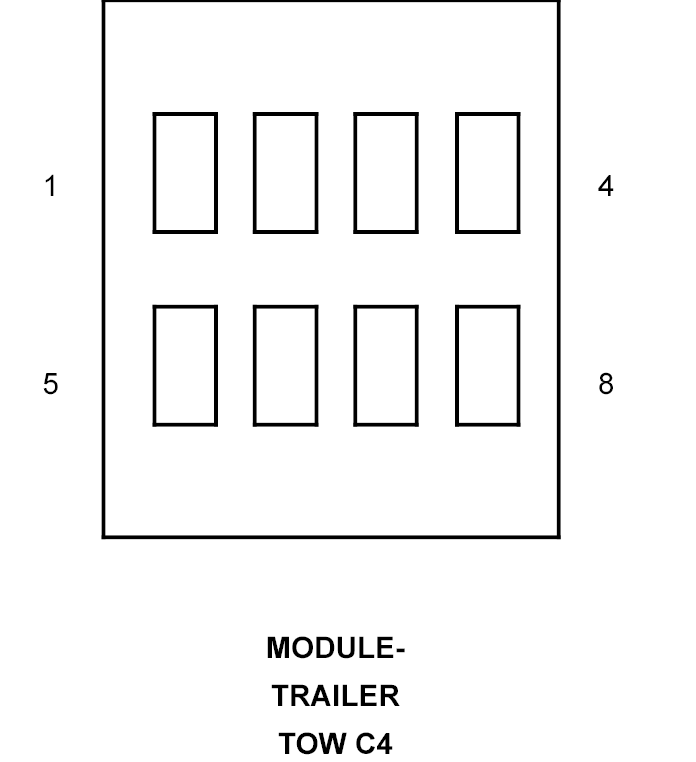

Trailer Tow Module Connector End View (C4)
MODULE-TRAILER TOW C4 - 8-WAYFEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D55 20WT/OR |
CAN B BUS (+) |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
D54 20WT |
CAN B BUS (-) |
| 6 |
F941 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 7 |
L50 18WT/TN |
BRAKE LAMP SWITCH OUTPUT |
| 8 |
- |
- |
